Fixing tie for hole (round), outside serrated, ∅3.0-30.0mm, natural, 100pcs.
Артикулен 126-00071 | OS150-PM6-WPJ-PA66-NA Подробности

Заявете вашата индивидуална оферта сега

Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6 (PA66)

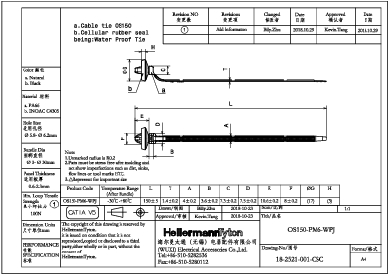

PART DESCRIPTION OS150-PM6-WPJ-PA66-NA
Pack Cont. 100pcs.
Package Content packed in bag
Product Family for round holes, sealed
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type OS150-PM6-WPJ
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 3.0-30.0mm
Bundle ∅ min. 3.0mm
Disc ∅ 17.0mm
Length (L) 150mm
Min.Tensile Strength 100N
Thickness (T) 1.4mm
Width (W) 4.0mm
Width (W2) 8.0mm
for Hole ∅ (FH) 5.8 - 6.2 mm
for Panel Thickness min - max 0.6 - 2.3 mm
Flammability UL 94 V2
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387950861
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
