Fixing tie for edge, inside serrated, ∅1.5-45.0mm, black, 500pcs.
Артикулен 156-00559 | T40REC5A-PA66HS/PA66HIRHS-BK |  Подробности

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
    • For edges of 1 – 3 mm
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Colour Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
    Fixation Method EdgeClip, sideway, assembled, 2 piece
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T40REC5A-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 1.0 - 3.0 mm, side fixing
    Product Group 2-piece fixing ties for edges
    Tie Closure plastic pawl

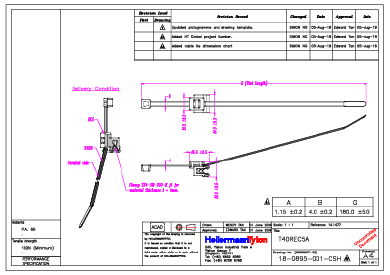

    Type T40REC5A
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 180.0mm
    Length (L2) 15.5mm
    Min.Tensile Strength 180N
    Panel Thickness max. 1.0 - 3.0mm
    Thickness (T) 1.15mm
    Width (W) 4.0mm
    Width (W2) 14.0mm
    Width (W3) 10.0mm
    for Panel Thickness min - max 1 - 3 mm
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026327471
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
