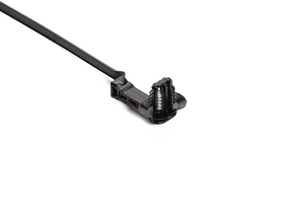

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 2000pcs.
Артикулен 157-00333
| T50ROSFTOVALIL25B-PA66HIRHSUV-BK
|
Подробности
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
- 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50ROSFTOVALIL25B-PA66HIRHSUV-BK |
| Pack Cont. | 2000pcs. |
| Package Content packed in | carton |
| Product Family | with offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes |
| Releasable Closure (Yes/No) | No |
| Type | T50ROSFTOVALIL25B |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 2.0-50.0mm |
| Bundle ∅ min. | 2.0mm |
| Disc ∅ | 17.63 x 23.63mm |
| Fixing Hole Shape | Oval |
| Height (H) | 12.85mm |
| Length (L) | 232.3mm |
| Length (L2) | 25.0mm |
| Min.Tensile Strength | 222N |
| Offset Length | 25.0mm |
| Panel Thickness max. | 0.6 - 6.75mm |
| Thickness (T) | 1.35mm |
| Weight/Unit | 0.0031kg |
| Width (W) | 4.70mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Изтегли
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026702049 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.35242499999999995m |
| Packaging 3 - Length (m) | 0.5715m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0703m³ |
| Packaging 3 - Weight (kg) | 6.93kg |
| Packaging 3 - Width (m) | 0.34925m |
| Packaging 4 - Height (m) | 1.2m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.152m³ |
| Packaging 4 - Weight (kg) | 104.16kg |
| Packaging 4 - Width (m) | 0.8m |
MK20
110-20006
MK10-SB
110-10001
EVO7i
110-77001
EVO7iSP
110-77002
MK3PNSP2
110-03400
MK7P
110-07100
ProCut 9 no battery
104-10010
EVOcut
110-05005
EVO9i
110-88001
EVO9iSP
110-88002

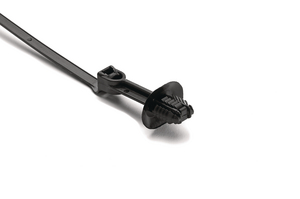

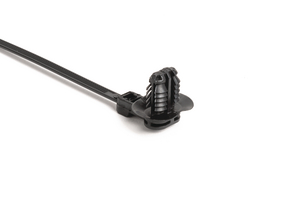

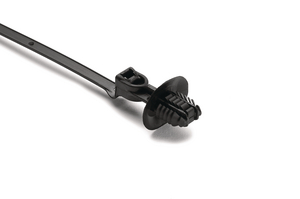

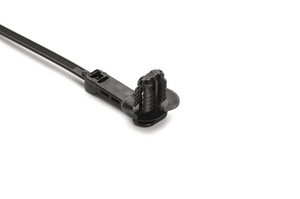

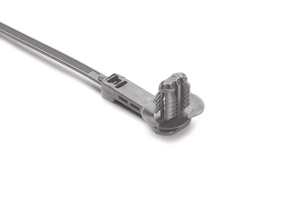

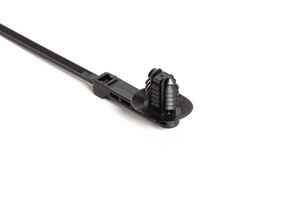

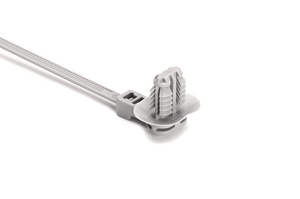

T50ROSFTOVAL25A
