Fixing tie for stud, outside serrated, ∅1.5-45.0mm, black, 500pcs.
Артикулен 156-01703 | T50ROSSB5CSD-PA66HS-BK |  Подробности

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта

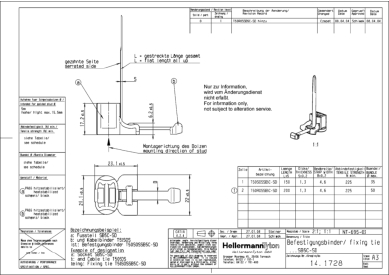

    Downloads CAD-Download
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50ROSSB5CSD-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Tie Closure plastic pawl
    Type T50ROSSB5CSD
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 1.3mm
    Height (H2) 17.2mm
    Length (L) 200mm
    Length (L2) 22mm
    Max Stud Length 15.5mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Weight/Unit 0.003693kg
    Width (W) 4.6mm
    Width (W2) 23.1mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026576398
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 1.890097kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.380388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 121.584kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
