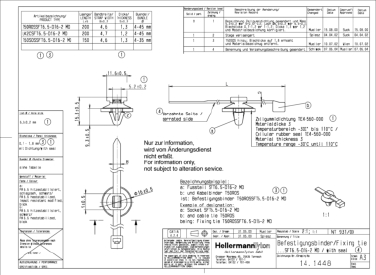

Fixing tie for hole (round), outside serrated, ∅2.0-45.0mm, black, 500pcs.
Артикулен 150-93100
| T50ROSSFT6.5-D16-2 MD-PA66HS/PA66HIRHS-BK
|
Подробности
- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions
- Seal protects against splash water
- Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | sealed |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSSFT6.5-D16-2 MD-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | 2-Pieces Fixing Ties with Arrowhead, with disc for round holes, sealed |
| Product Group | 2-Pieces Fixing Ties with Arrowhead, with disc for round holes, sealed |
| Short Description | Fixing Tie 200x4.6 mm, 2-piece, arrowhead, heat stabilised, high impact modified, black |
| Tie Closure | plastic pawl |
| Type | T50ROSSFT6.5-D16-2 MD |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 2.0-45.0mm |
| Bundle ∅ min. | 2.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 1.3mm |
| Length (L) | 200mm |
| Min.Tensile Strength | 222N |
| Panel Thickness max. | 0.7 - 1.8mm |
| Weight/Unit | 0.001893kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.7 - 1.8 mm |
| for Panel Thickness min - max | 0 - 0.8 " |
Изтегли
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026205021 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.455m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01456m³ |
| Packaging 1 - Weight (kg) | 0.975635kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.05308kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 129.624kg |
| Packaging 4 - Width (m) | 0.8m |
