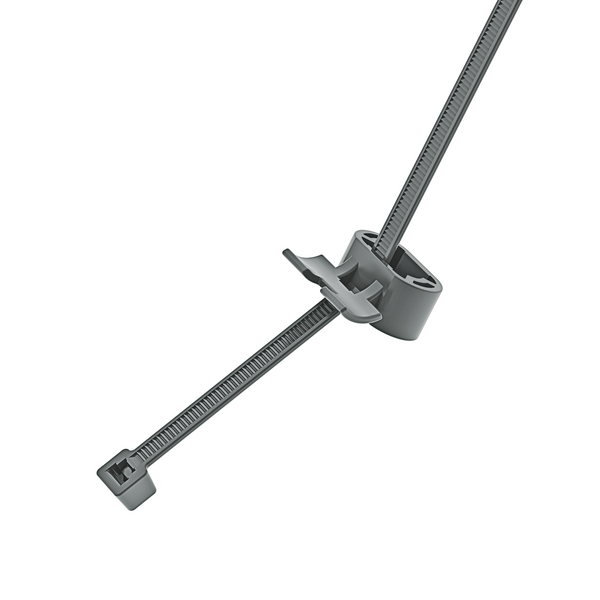

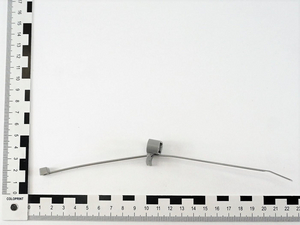

Fixing tie for stud, inside serrated, ∅2.0-45.0mm, grey, 500pcs.
Артикулен 156-00084 | T50RSB5-PA46-GY |  Подробности

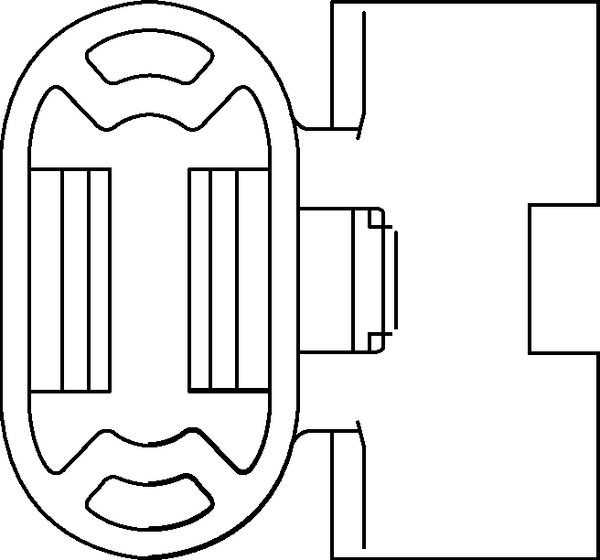

Cable ties with various weld stud fixing methods.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads CAD-Download

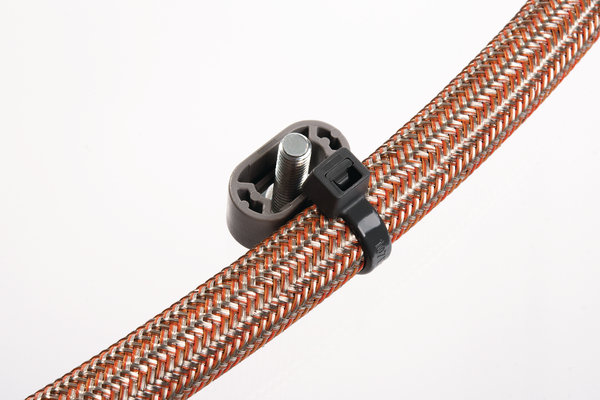

    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50RSB5-PA46-GY
    Pack Cont. 500pcs.

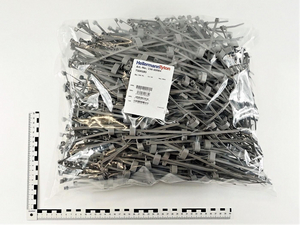

    Package Content packed in bag
    Product Family T50RSB5
    Product Group 2-Piece Fixing Ties for Weld , moveable
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSB5
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 2.0-45.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 10mm
    Length (L) 202mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm, 6.0 mm, M5, M6
    Thickness (T) 1.2mm
    Weight/Unit 0.003005kg
    Width (W) 4.6mm
    Width (W2) 21.8mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026253640
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01638m³
    Packaging 1 - Weight (kg) 1.546097kg
    Packaging 1 - Width (m) 0.39m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.004388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 105.072kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
