Fixing tie for hole (round), inside serrated, ∅1.5-31.0mm, natural, 500pcs.
Артикулен 126-01401 | T50SD6-PA66-NA |  Подробности

The flexible 'discs' adjusts to take up variations in panel thickness - ensuring a firm fixing at all times.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50SD6-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SD6
    Variant Inside Serrated
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 1.5-31.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 18.0mm

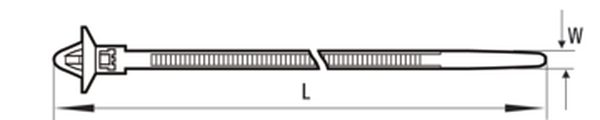

    Length (L) 160.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.5mm
    Width (W) 5.0mm
    for Hole ∅ (FH) 6.3 - 7.5 mm
    for Panel Thickness min - max 0.6 - 1.8 mm
    for Panel Thickness min - max 0 - 0.1 "
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660326394
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Width (m) 0.379m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
