Fixing tie with pipe/tube holder, ∅2.0-50.0mm, grey, 500pcs.
Артикулен 156-00577 | T50SMVCOC19-24.5-PA46-GY |  Подробности

T50SMVCOC19-24.5

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Inside serrated cable tie
    • Ideally used in the automotive industry
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads CAD-Download
    Application HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Cable Tie Polyamide 4.6 (PA46)
    Colour Grey (GY)
    Fixation Method Omega Clip
    Foot Part Polyamide 4.6 (PA46)
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50SMVCOC19-24.5-PA46-GY

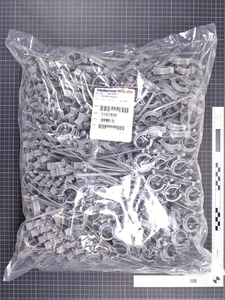

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T50SMVCOC19-24,5 for Pipediameter 19.0 - 24.5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC19-24.5
    Attach to Diameter 0.75 - 0.96 "
    Attach to Ø 19.0 - 24.5
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm

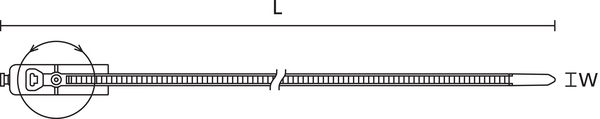

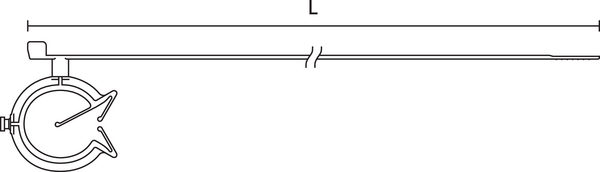

    Length (L) 210.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.005355kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026329895
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02176m³
    Packaging 1 - Weight (kg) 2.721097kg
    Packaging 1 - Width (m) 0.37m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.704388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 161.472kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
