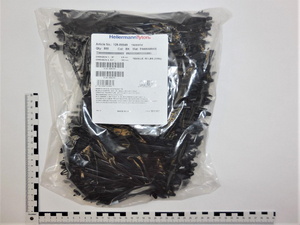

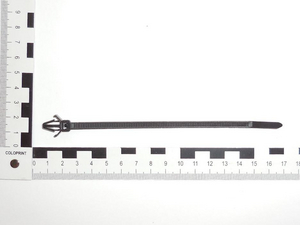

Fixing tie for hole (round), inside serrated, ∅3.2-35.0mm, black, 500pcs.
Артикулен 126-00049
| T50SSFM-PA66HIRHSUV-BK
|
Подробности
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50SSFM-PA66HIRHSUV-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SSFM |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ | 3.2-35.0mm |
| Bundle ∅ min. | 3.2mm |
| Height (H) | 5.60mm |
| Length (L) | 160.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.7 - 3.0mm |
| Weight/Unit | 0.001346kg |
| Width (W) | 4.6mm |
| Width (W2) | 14.7mm |
| for Hole ∅ (FH) | 6.0 - 6.6 mm |
| for Panel Thickness min - max | 0.7 - 3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Изтегли
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026423081 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00376m³ |
| Packaging 1 - Weight (kg) | 0.673001kg |
| Packaging 1 - Width (m) | 0.185m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 7.59001kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 75000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 134.85kg |
| Packaging 4 - Width (m) | 0.8m |
