Fixing tie for hole (round), inside serrated, ∅50.0mm, black, 500pcs.
Артикулен 126-00094 | T80RSF6.5F-PA66HS-BK |  Подробности

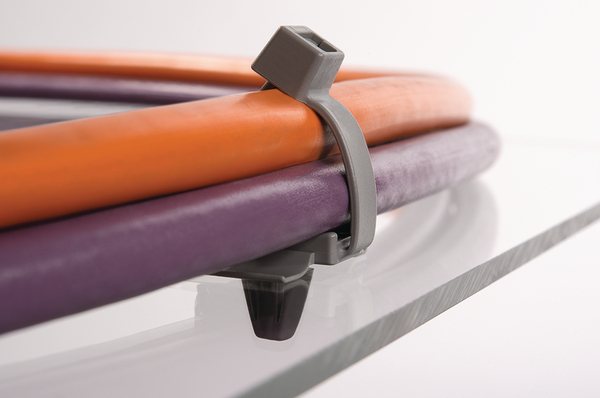

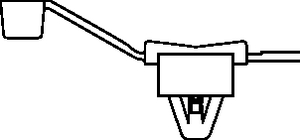

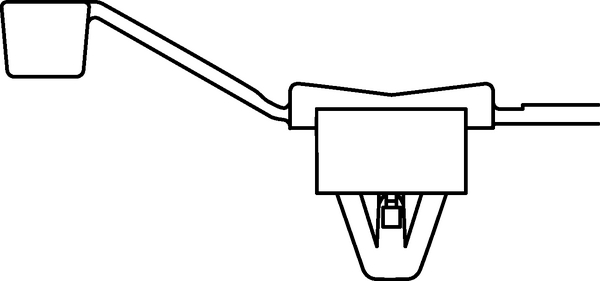

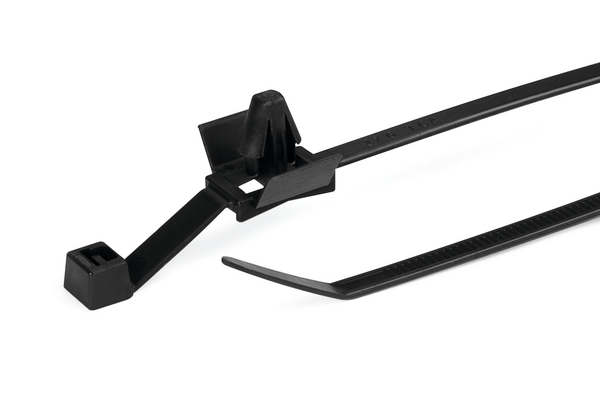

1-Piece Fixing Tie with Arrowhead.

    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Bundle runs central across fixing point
    • Cable tie head always situated in defined position

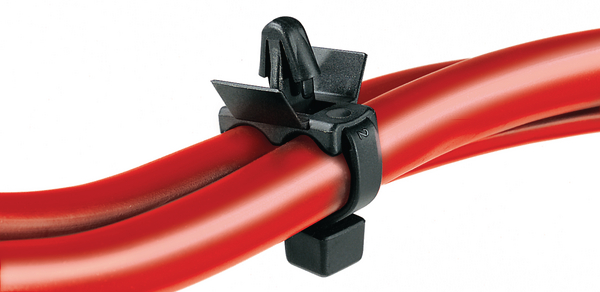

    • For parallel routing of two bundles
    покажи повече
    Размер на опаковката
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads
    Application This range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building. The T80RSF6.5FW features a detent that fits securely into the profile of the tubing which prevents from lateral movement and slipping.
    Colour Black (BK)
    Description Arrowhead Push Ties secure fast and easy, while providing a disc feature to minimize the ingress of dust, dirt, and water. The anchor slides along the tie and adjusts for variations in panel thicknesses which insures a secure fixing at all times.
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T80RSF6.5F-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T80RSF6.5F
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings in the strap
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80RSF6.5F
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm

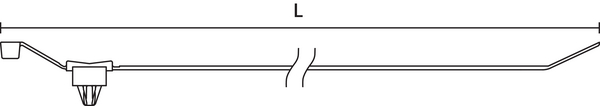

    Length (L) 209mm
    Min.Tensile Strength 355N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.5 mm
    for Panel Thickness min - max 0.6 - 3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176000019
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
