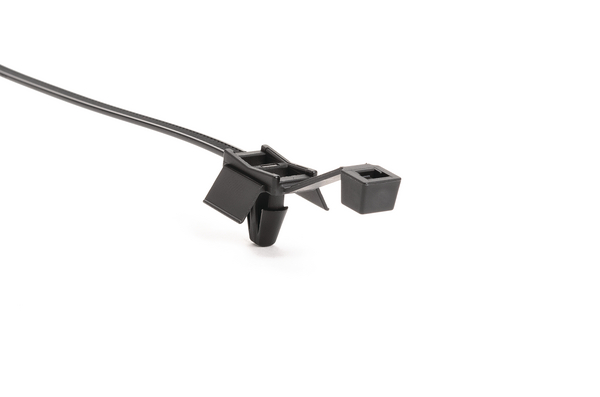

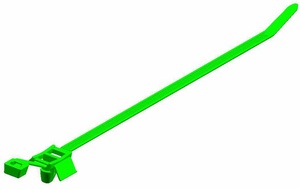

Fixing tie for hole (round), inside serrated, ∅43.0mm, black, 1000pcs.
Артикулен 126-00047
| T80SSF6.5F-PA66HIRHS-BK
|
Подробности
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing when space is limited
- Bundle runs central across fixing point
- Cable tie head always situated in defined position
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | This range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building. The T80RSF6.5FW features a detent that fits securely into the profile of the tubing which prevents from lateral movement and slipping. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Description | Arrowhead Push Ties secure fast and easy, while providing a disc feature to minimize the ingress of dust, dirt, and water. The anchor slides along the tie and adjusts for variations in panel thicknesses which insures a secure fixing at all times. |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T80SSF6.5F-PA66HIRHS-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings in the strap |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T80SSF6.5F |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 43.0mm |
| Bundle ∅ | 43.0mm |
| Fixing Hole Shape | Circular |

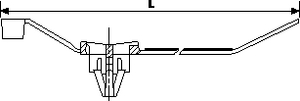

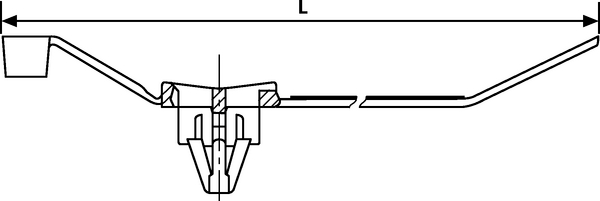

| Length (L) | 179mm |
| Min.Tensile Strength | 300N |
| Panel Thickness max. | 0.6 - 3.0mm |
| Weight/Unit | 0.001833kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.3 - 6.5 mm |
| for Panel Thickness min - max | 0.6 - 3 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Изтегли
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026267449 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.873kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 8.592kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 32000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 89.736kg |
| Packaging 4 - Width (m) | 0.8m |
