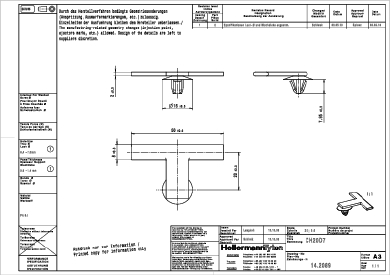

Bundling clip for hole (round), L=50.0mm, SO=20.0mm, black, 100pcs.
Артикулен 151-02600
| CH20D7-PA66-BK
|
Подробности
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
- Bundles and cables routed at a set distance from punched holes
Още продукти от тази продуктова група:
| Application | Originally designed for the Automotive industry, these clips offer simple and easy methods of securing cable hoses or pipes. They have many applications within a wide range of industries. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | CH20D7-PA66-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Group | Bundling Clips with Fir Tree, for Distance Routing |
| Short Description | Bundling Clip, round hole 6.4 - 7.0 mm, arrow head, offset, black |
| Type | CH20D7 |
| Wings on clip base (Yes / No) | NO |
Изтегли
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660302572 |
| Packaging 1 - Height (m) | 0.053m |
| Packaging 1 - Length (m) | 0.141m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00136m³ |
| Packaging 1 - Weight (kg) | 0.190001kg |
| Packaging 1 - Width (m) | 0.182m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 10.30205kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 227.04kg |
| Packaging 4 - Width (m) | 0.8m |
