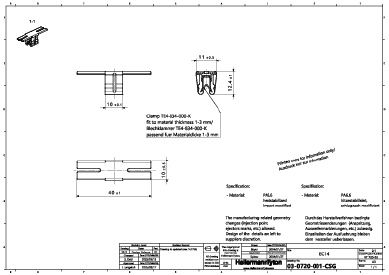

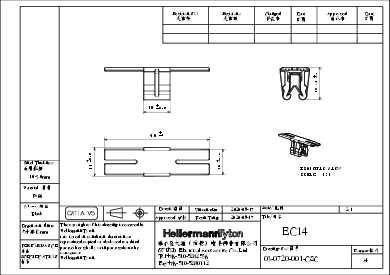

Bundling clip for edge, L=40.0mm, black, 500pcs.
Артикулен 151-03404
| EC14-PA66HIRHS-BK
|
Подробности
- Easy assembly, just shuffle manually
- Designed for edges of 1 - 3 and 1.5 - 4 mm
- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered steel spring
- ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | EdgeClips are used in the automotive industries and electrical industries and when it is impossible to drill holes or no other fixing points are available. |
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | Edge Clip |
| Internet Customer Notice | Scroll down for alternative automation-ready products. |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | EC14-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | 1 - 3 mm and 1.5 - 4.0 mm |
| Product Group | Bundling clips for edges |
| Short Description | Bundling Clip for Edges 1 - 3 mm, 40x10 mm, high impact modified, heat stabilised, black |
| Type | EC14 |
| Wings on clip base (Yes / No) | NO |
Изтегли
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026235530 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.28m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00353m³ |
| Packaging 1 - Weight (kg) | 0.685kg |
| Packaging 1 - Width (m) | 0.28m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.61kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 160000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 253.2kg |
| Packaging 4 - Width (m) | 0.8m |
