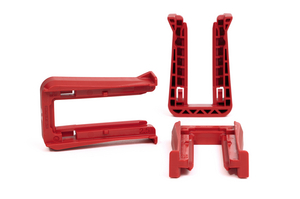

Fixing slider for connectors, T=2.5mm, red, 1200pcs.
Артикулен 151-02408
| FSE2.5-PBTGF30-RD
|
Подробности
- Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
- Panel thickness is marked on the slider
- Permanent fixation of the connectors in the mounting hole by using the slider
- These parts are also available in V0 material (flame retardent) e.g. for public transport
- Fixing slider fit for the Aptiv connector XS and SP series
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
Application | The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it. |
Colour | Red (RD) |
Material | Polybutylene Terephthalate glass-fibre reinforced (PBTGF30) |
PART DESCRIPTION | FSE2.5-PBTGF30-RD |
Pack Cont. | 1200pcs. |
Package Content packed in | bag |
Product Family | Fixing Slider E, 2.5 mm CTCS-series |
Product Group | Connector Accessory Fixing Slider, Group E |
Type | FSE2.5 |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026608235 |
Packaging 1 - Height (m) | 0.8m |
Packaging 1 - Length (m) | 0.6m |
Packaging 1 - Qty | 1200 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.192m³ |
Packaging 1 - Weight (kg) | 9.900611kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 1200 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 10.550611kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.164m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 24000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.117m³ |
Packaging 4 - Weight (kg) | 232.004kg |
Packaging 4 - Width (m) | 0.8m |
