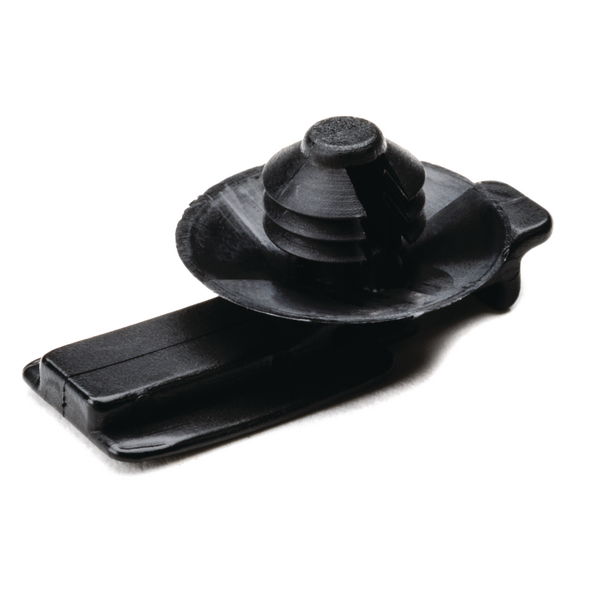

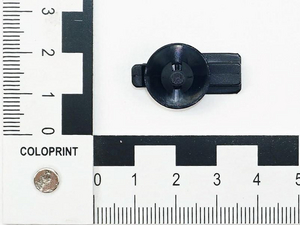

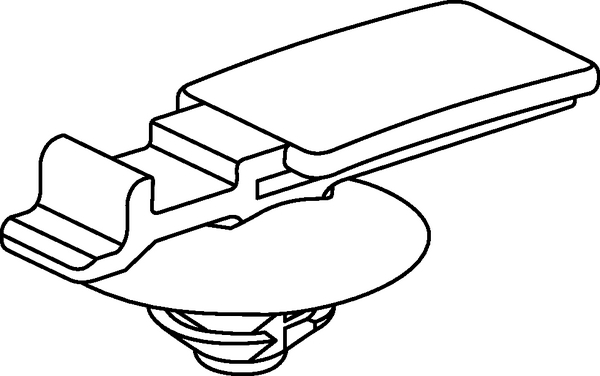

Connector clip, EWCAP-005-11, black, 500pcs.
Артикулен 151-01841 | YCCFT6S-2-PA66HIRHS-BK |  Подробности

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads CAD-Download
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCFT6S-2-PA66HIRHS-BK
    Pack Cont. 500pcs.

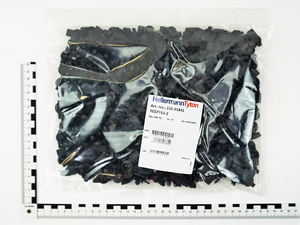

    Package Content packed in bag
    Product Group Connector Clips for round holes
    Type YCCFT6S-2
    Disc ∅ 16mm
    Height (H) 11.1mm
    Length (L) 27.0mm
    Panel Thickness max. 0.75 - 1.5mm
    Weight/Unit 0.000669kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 1.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026573755
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.348362kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 7.61724kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 173.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
