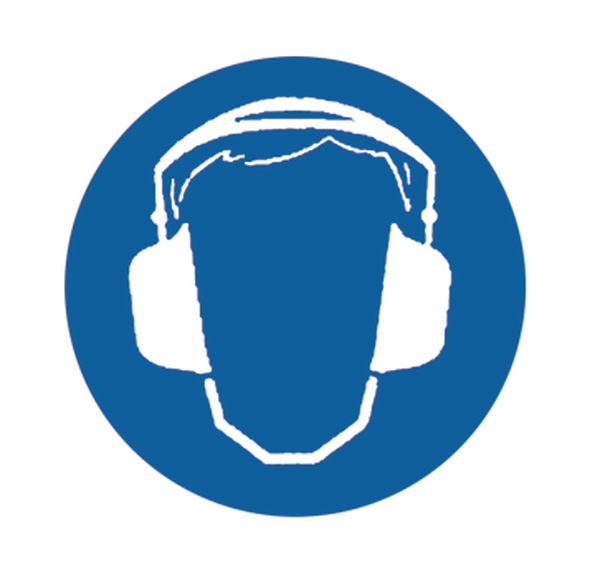

Security Label Wear Ear Protection 100.0 mm blue
Артикулен 597-64303
| ASS4-D-150-BU
|
Подробности
- Durable printing on high-grade self-adhesive vinyl
- Long lasting and highly visible
- Labels display internationally recognised symbols
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
Chem. Material Properties | self extinguishing, resistant to oils, water and solvents |
Colour | Blue (BU) |
Colour of Print | White (WH) |
Material | Type 150, Vinyl (150) |
PART DESCRIPTION | ASS4-D-150-BU |
Pack Cont. | 10pcs. |
Package Content packed in | pack |
Product Family | HELASIGN, Material 150 |
Product Group | Mandatory signs |
Self adhesive (Yes/No) | Yes |
Short Description | Security Label Wear Ear Protection 100.0 mm blue |
Type | ASS4-D |
Adhesive | Acrylic |
Curing Temperature | from +10 °C |
ELV compliant (Article 4 - 2) | YES |
Halogen-free | No |
Hazardous Goods | No |
Initial tack | 110g/cm² |
Initial tack | ASTM D2979-71 |
Operating Temperature | -40 °C to +80 °C |
Peel strength | 550 N/m |
Peel strength test method | PSTC 7 |
Pre-Printed | Yes |
ROHS compliant | Yes |
Shear strength | 120h |
Shear strength test method | FINAT FTM 7 |
Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
Specifications |
![]() |
|
|
Country of Origin | DE |
Customs Number | 49119900 |
GTIN-13 / EAN | 4031026180779 |
Labels per Sheet | 1pc. |
Packaging 1 - Height (m) | 0.005m |
Packaging 1 - Length (m) | 0.275m |
Packaging 1 - Qty | 10 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00015m³ |
Packaging 1 - Weight (kg) | 0.054001kg |
Packaging 1 - Width (m) | 0.11m |
Packaging 3 - Height (m) | 0.24m |
Packaging 3 - Length (m) | 0.55m |
Packaging 3 - Qty | 500 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0515m³ |
Packaging 3 - Weight (kg) | 27.5kg |
Packaging 3 - Width (m) | 0.39m |
Sheets per Pack | 10 |
Storage Temperature | +21 °C |
Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
