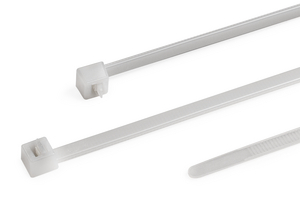

Releasable cable tie, 350x4.6mm, ∅5.0-95.0mm, 200N, natural, 100pcs.
Cikkszám 115-02302 | RELK2L-PA66-NA Részletek

  • Releasable and reusable cable tie

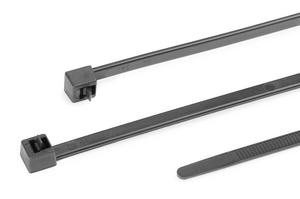

  • Available in black and natural colour
  • Extended trigger for simple and quick release of ties
  • RELK cable ties are inside serrated
  • Different lengths are available
mutasson többet

Kérje egyedi ajánlatát most

Application Used in a wide range of industries these releasable and reusable ties are ideal where changes are anticipated. This includes temporary installation and the addition or removal of elements. These releasable cable ties are commonly used to fix stage equipment, for cable management at outdoor events or prototype harnessing work. The extended pawl is simply pushed down with a finger to release the strap.
Colour Natural (NA)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RELK2L-PA66-NA
Pack Cont. 100pcs.
Package Content packed in bag
Product Family RELK-Series up to 200 N loop tensile strength
Product Group Cable ties inside serrated
Releasable Closure (Yes/No) Yes
Short Description Releasable Cable Tie 350x4.6 mm, natural
Tie Closure plastic pawl
Type RELK2L
Variant Inside Serrated
Bundle Diameter max (metric) 95.0mm
Bundle ∅ 5.0-95.0mm
Bundle ∅ min. 5.0mm
Length (L) 350mm
Min.Tensile Strength 200N
Weight/Unit 0.0028kg
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Specifications IEC 60092 series
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5016371005389
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.508m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00309
Packaging 1 - Weight (kg) 0.280001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 12.00204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 261.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
