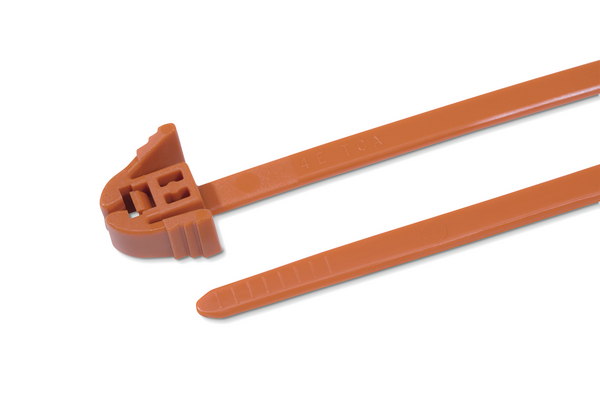

Releasable cable tie, 200x4.7mm, ∅16.0-50.0mm, 135N, orange, 100pcs.
Cikkszám 115-00132 | REZ200-PA66-OG Részletek

  • REZ-Series can be released and reused
  • Unique head design for simple and rapid use
  • Quick-release mechanism for one-hand operation
  • Cable tie can be opened even when under tension
  • Can still be released when working with gloves
mutasson többet

Kérje egyedi ajánlatát most

Application Perfect for use in the packaging industry as a bag closure where access to part of the bag content may be needed but the bag needs to be re-sealed later. Something that often occurs for instance in the catering or service industry. In addition the cable tie can be opened easily with only two fingers by simply pushing the wings of the unique head.
Colour Orange (OG)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
PART DESCRIPTION REZ200-PA66-OG
Pack Cont. 100pcs.
Package Content packed in bag
Product Family REZ-Series
Product Group Cable ties inside serrated with one-hand release mechanism
Releasable Closure (Yes/No) Yes
Short Description Cable tie 200x4.7 mm, PA66, orange
Tie Closure plastic pawl
Type REZ200
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 16.0-50.0mm
Bundle ∅ min. 16.0mm
Length (L) 200mm
Min.Tensile Strength 135N
Weight/Unit 0.00176kg
Width (W) 4.7mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660344602
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.282m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.176001kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 11.36206kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 248.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
