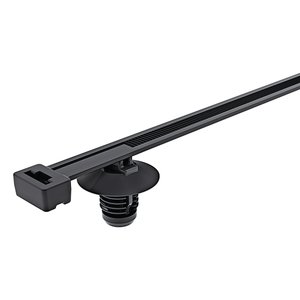

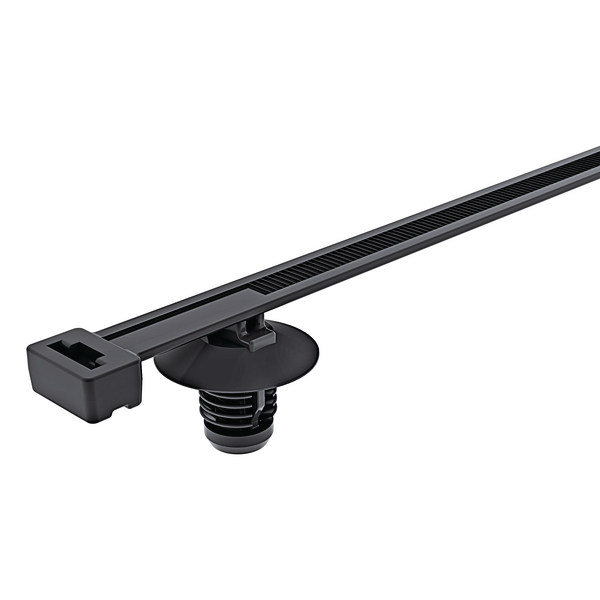

Fixing tie for hole (round), ∅6.0-40.0mm, black, 100pcs.
Cikkszám 157-00076
| CM200FT9J-PA66HSW-BK
|
Részletek
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Suitable for use within threaded holes
- Reusable - Less waste and less pollution of the environment
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:

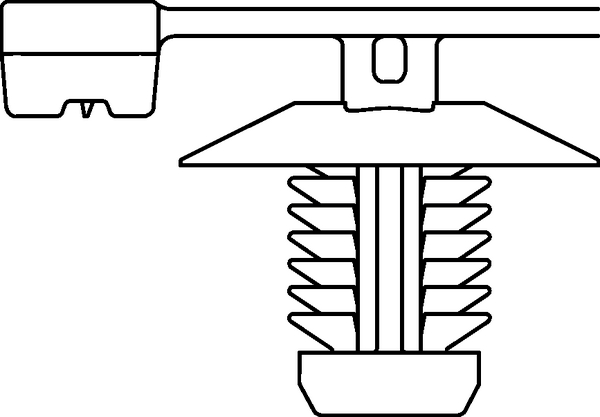

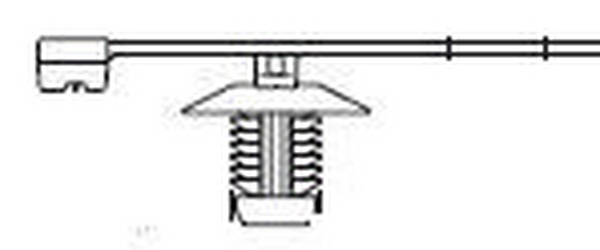

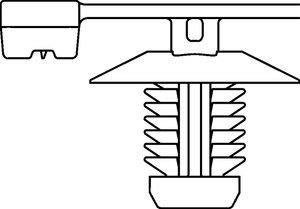

| Application | This fir tree design is ideal for use in thick panels and threaded, blind holes. The additional disc avoids the intrusion of dust and dirt. |
| Colour | Black (BK) |

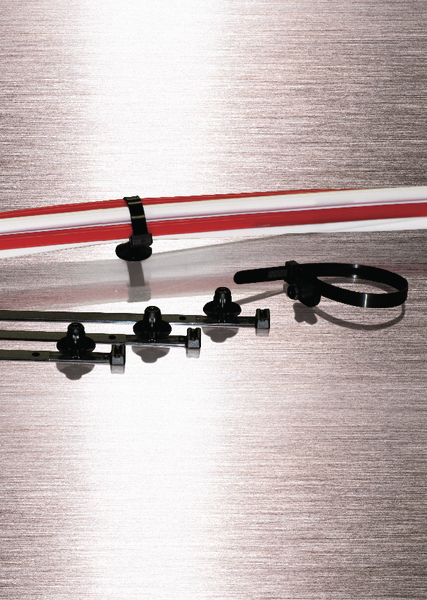

| Description | For fixing cable bundles on panels |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| PART DESCRIPTION | CM200FT9J-PA66HSW-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, releasable |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | Yes |
| Tie Closure | plastic pawl |
| Type | CM200FT9J |

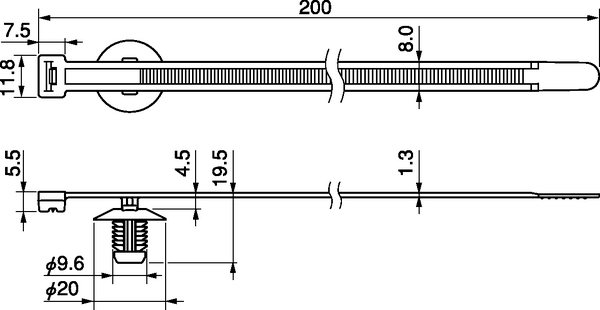

| Bundle Diameter max (metric) | 40.0mm |
| Bundle ∅ | 6.0-40.0mm |
| Bundle ∅ min. | 6.0mm |
| Disc ∅ | 20mm |
| Length (L) | 200mm |
| Min.Tensile Strength | 300N |
| Panel Thickness max. | 2.3 – 6.0mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.003444kg |
| Width (W) | 8.0mm |
| for Hole ∅ (FH) | 8.8 - 9.2 mm |
| for Panel Thickness min - max | 2.3 - 6 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
Letöltés
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387957693 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00439m³ |
| Packaging 1 - Weight (kg) | 0.344401kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.3m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.043m³ |
| Packaging 3 - Weight (kg) | 3.82401kg |
| Packaging 3 - Width (m) | 0.315m |

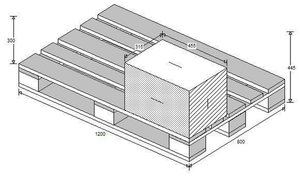

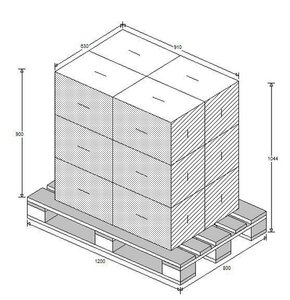

| Packaging 4 - Height (m) | 1.044m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 15000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.002m³ |
| Packaging 4 - Weight (kg) | 78.36kg |
| Packaging 4 - Width (m) | 0.8m |
