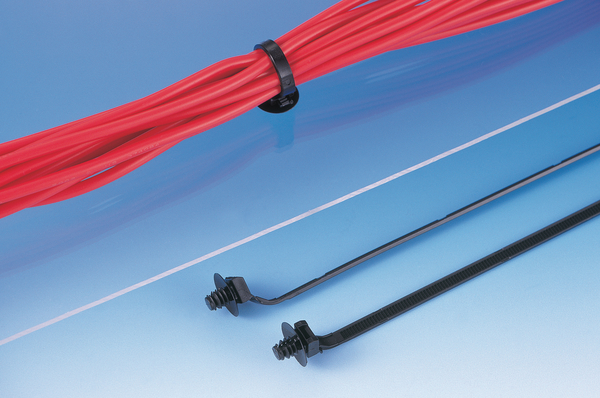

Fixing tie for hole (round), outside serrated, ∅3.0-30.0mm, black, 100pcs.
Cikkszám 126-00057
| OS160FT5-PA66HSUV-BK
|
Részletek
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Parts with an anti-slip engraving, such as the T30SOS-AS-FT5-E, to prevent the harness from slipping sideways
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer. |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| PART DESCRIPTION | OS160FT5-PA66HSUV-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | Fir tree parts FT5 |
| Product Group | 1-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | OS160FT5 |
|
|
| Bundle Diameter max (metric) | 30.0mm |
| Bundle ∅ | 3.0-30.0mm |
| Bundle ∅ min. | 3.0mm |
| Disc ∅ | 13.0mm |
| Hole Depth | 5.6mm |
| Length (L) | 163.0mm |
| Length (L2) | 11.40mm |
| Min.Tensile Strength | 100N |
| Thickness (T) | 1.4mm |
| Weight/Unit | 0.00107kg |
| Width (W) | 4.0mm |
| Width (W2) | 5.4mm |
| for Hole ∅ (FH) | 4.5 - 5.0 mm |
| for Panel Thickness min - max | 1.6 - 3.2 mm |
Letöltés
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387948356 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.107001kg |
| Packaging 3 - Height (m) | 0.315m |
| Packaging 3 - Length (m) | 0.505m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0589m³ |
| Packaging 3 - Weight (kg) | 3.205025kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Height (m) | 1.089m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.045m³ |
| Packaging 4 - Weight (kg) | 59.46kg |
| Packaging 4 - Width (m) | 0.8m |
