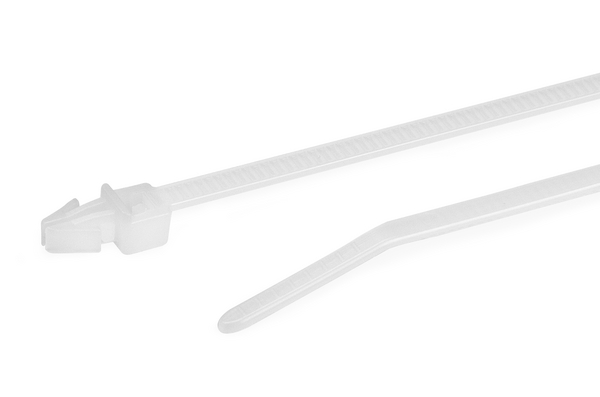

Fixing tie for hole (round), inside serrated, ∅1.6-32mm, natural, 500pcs.
Cikkszám 126-00330
| T30RSF-PA66-NA
|
Részletek
- Easy to assemble without the need for a tool
- Fixing tie with arrowhead without wings
- Arrowhead simply locks into place
- Cable tie head always situated in defined position
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | The arrowhead design is usefull in areas with limited space. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T30RSF-PA66-NA |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | without wings and disc, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-piece fixing tie with arrowhead 158x3.6 mm, natural |
| Tie Closure | plastic pawl |
| Type | T30RSF |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 32mm |
| Bundle ∅ | 1.6-32mm |
| Bundle ∅ min. | 1.6mm |

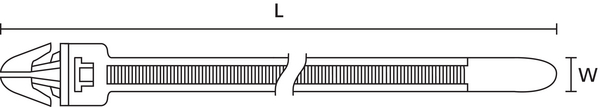

| Length (L) | 158.0mm |
| Min.Tensile Strength | 135N |
| Panel Thickness max. | 0.9 – 2.4mm |
| Weight/Unit | 0.000803kg |
| Width (W) | 3.6mm |
| for Hole ∅ (FH) | 4.7 - 5.6 mm |
| for Panel Thickness min - max | 0.9 - 2.4 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64963 |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026599861 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00622m³ |
| Packaging 1 - Weight (kg) | 0.430635kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.95635kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 120.1kg |
| Packaging 4 - Width (m) | 0.8m |
