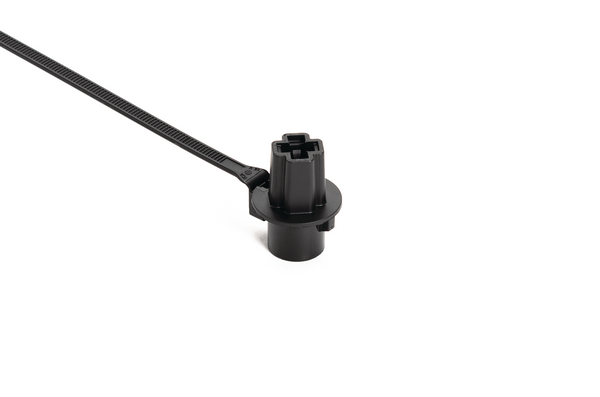

Fixing tie for stud, outside serrated, ∅5.0-50.0mm, black, 1500pcs.
Cikkszám 157-00275
| T50RM6OSSM-PA66HIRHSUV-BK
|
Részletek
- Standoff design keeps bundles away from mounting surface and obstructions.
- Low-profile outside serrated tie with grip rails keeps harnesses and wires protected and secure.
- Four-pawl, three-tooth design provides low insertion force and delivers outstanding stud retention.
- Mount can be used in a wide variety of applications including 5 mm and 6 mm bolts, as well as weld studs.
- Designed for quick and easy assembly by hand without the need for tools.
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |
| Description | One-piece cable tie with stud mount features a standoff design that keeps bundles away from mounting surfaces and obstructions. With its low insertion force and high extraction performance, HellermannTyton’s mounting tie offers the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50RM6OSSM-PA66HIRHSUV-BK |
| Pack Cont. | 1500pcs. |
| Package Content packed in | carton |
| Product Family | Offset Stud Mount Ties |
| Product Group | Stud Mount Cable Ties |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RM6OSSM |
| Variant | Outside Serrated |
Letöltés
| CE Certification | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026568805 |
| Packaging 1 - Height (m) | 0.203m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 1500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04762m³ |
| Packaging 1 - Weight (kg) | 7.500001kg |
| Packaging 1 - Width (m) | 0.391m |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 8.270001kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 22500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 145.05kg |
| Packaging 4 - Width (m) | 0.8m |
