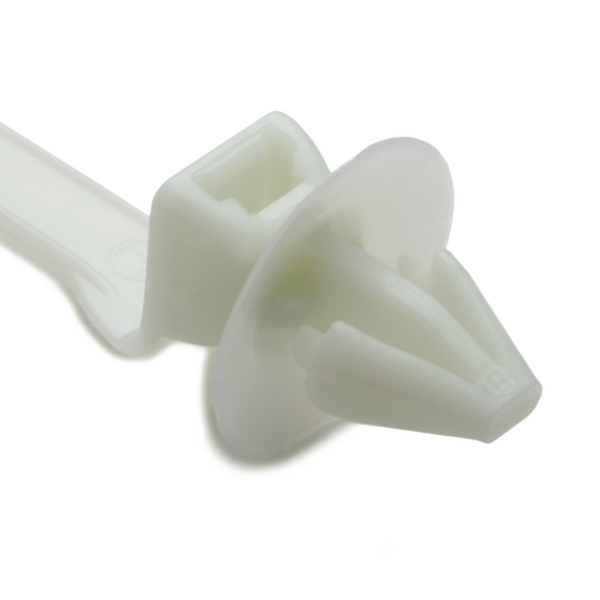

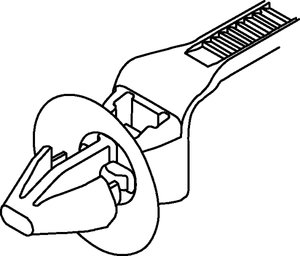

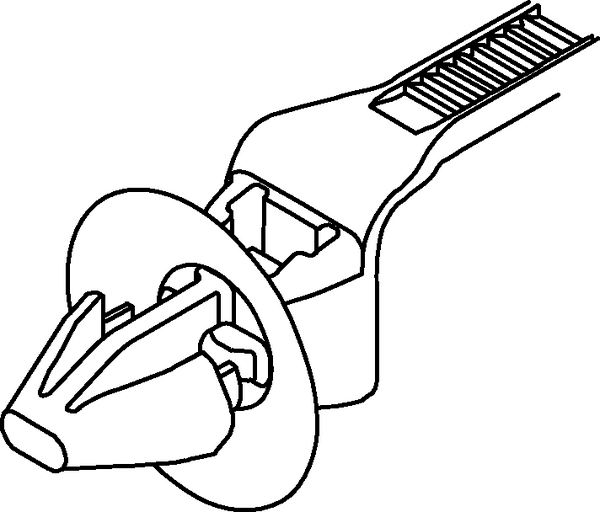

Fixing tie for hole (round), outside serrated, ∅1.0-50.0mm, natural, 500pcs.
Cikkszám 126-00114
| T50ROSAH6U-PA66HIRHS-NA
|
Részletek
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:

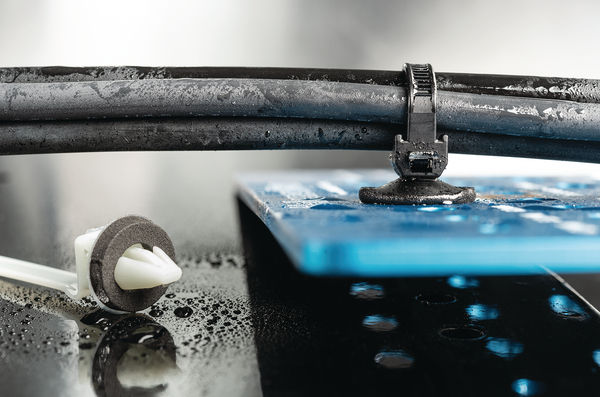

| Application | With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSAH6U-PA66HIRHS-NA |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROSAH6U |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 1.0-50.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0mm |
| Length (L) | 215.9mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 1.8 - 3.0mm |
| Weight/Unit | 0.01257kg |
| Width (W) | 5.0mm |
| for Hole ∅ (FH) | 6.1 - 6.9 mm |
| for Panel Thickness min - max | 1.8 - 3 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026323787 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 6.285001kg |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 38.480006kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 45000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 598.2kg |
| Packaging 4 - Width (m) | 0.8m |
