Fixing tie for edge, outside serrated, ∅1.0-35.0mm, black, 5000pcs.
Cikkszám 126-00374 | T50SOSEC12E-PA66W-BK | Részletek

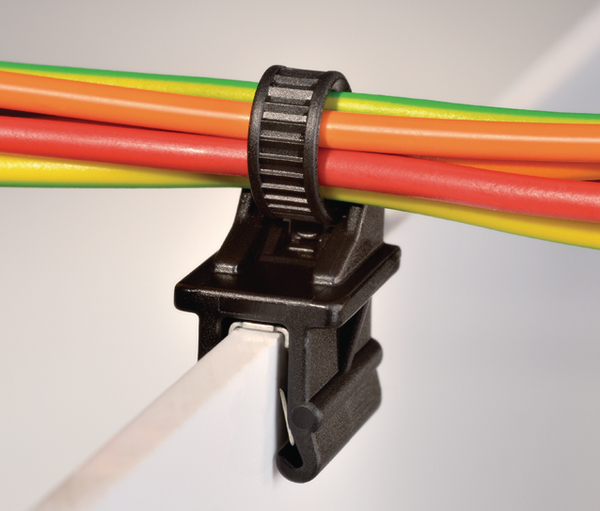

1-Piece Fixing Tie T50SOSEC12 can be pushed easily on edges.

Cable tie head always situated in defined position
Suitable for minimum bundle diameters of 1 mm
Outside serrated tie prevents bundle from being damaged
For edges of 1 – 3 mm

Felvétel a figyelőlistára

Kérje egyedi ajánlatát most

Ajánlatkérés

Keressen egy forgalmazót az Ön közelében

Downloads

More products in this product group:

1-piece fixing ties for edges >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. Once the cable tie is fastened around the cables the EdgeClip is presented ready for attaching to the panel. Widely used within the automotive and panel building industries these cable ties and EdgeClips save time and money. The silver-grey clamp, the heart of our EdgeClips, consists of doubletempered spring steel in accordance with DIN EN 10132-4 C75S. The spring steel gives the clamp both the necessary rigidity to provide high pull-off forces and also sufficient flexibility for various possible applications. The double coating is applied initially with a zinc plate system followed by inorganic surface sealing. Naturally, no chromium (VI) is used in this process. The clamp therefore complies with the current EU Directive 200/53/EC on end of life vehicles and the prohibition on heavy metals. The refined spring-steel clamp also fulfils the requirements for resistance to salt spray stipulated in DIN EN ISO 9227 NSS (min. 840 h without corrosion of base metal) and DIN EN ISO 6270-Z-CH (min. 720 h without corrosion of base material). This solution has therefore been approved by many OEMs for exposed installation locations, e.g. in engine compartments and the running-gear area.
Colour	Black (BK)
Description	HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.
Fixation Method	Edge Clip
Identification Plate Position	none
Key product features	products for automatic tools
Material	Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION	T50SOSEC12E-PA66W-BK
Pack Cont.	5000pcs.
Package Content packed in	box
Product Family	EdgeClip
Product Group	1-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SOSEC12E
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	35.0mm
Bundle ∅	1.0-35.0mm
Bundle ∅ min.	1.0mm
Height (H)	1.35mm
Length (L)	160.0mm
Length (L2)	15.0mm
Min.Tensile Strength	180N
Weight/Unit	0.002407kg
Width (W)	4.6mm
Width (W2)	11.0mm
for Panel Thickness min - max	1 - 3 mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026640228
Packaging 1 - Height (m)	0.11m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01955m³
Packaging 1 - Weight (kg)	1.232635kg
Packaging 1 - Width (m)	0.45m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	5000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	13.14635kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	60000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	178.74kg
Packaging 4 - Width (m)	0.8m
