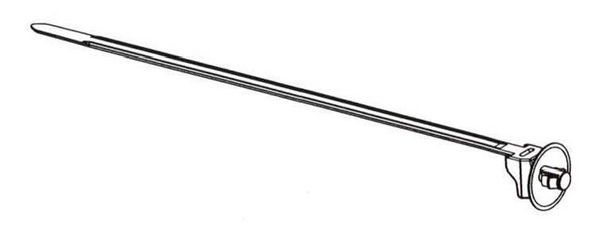

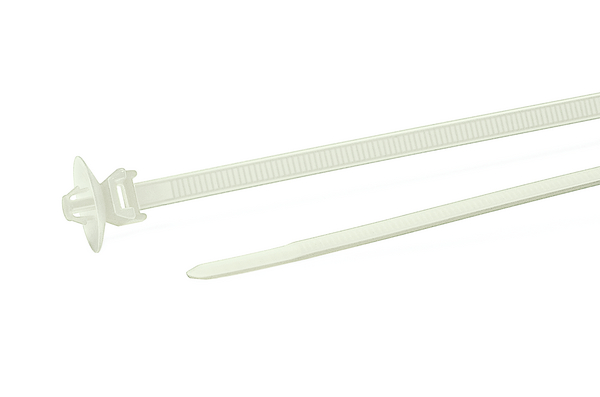

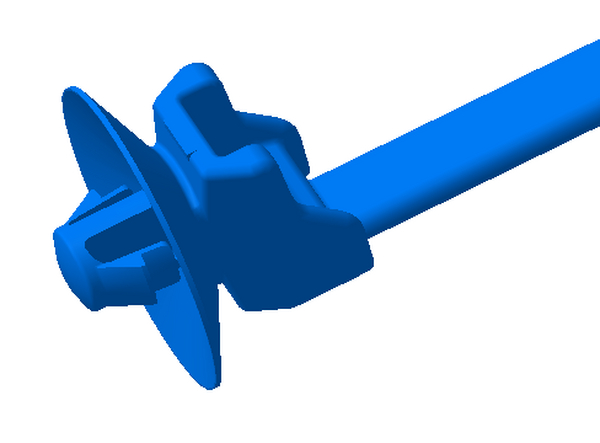

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, natural, 1000pcs.
Cikkszám 126-00111
| T50SOSKSFT5S-E-PA66HS-NA
|
Részletek
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Fixing ties with arrowhead are ideal for use in many different industries, including automotive, aerospace and panel building. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSKSFT5S-E-PA66HS-NA |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing tie 156x4.6 mm, arrowhead, heat stabilised, natural |
| Tie Closure | plastic pawl |
| Type | T50SOSKSFT5S-E |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ | 1.0-35.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0mm |
| Length (L) | 156.0mm |
| Min.Tensile Strength | 180N |
| Panel Thickness max. | 0.7 – 1.3mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001283kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 4.8 - 5.2 mm |
| for Panel Thickness min - max | 0.7 - 1.3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026323312 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.016m³ |
| Packaging 1 - Weight (kg) | 1.312135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 11.31708kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 156.792kg |
| Packaging 4 - Width (m) | 0.8m |
