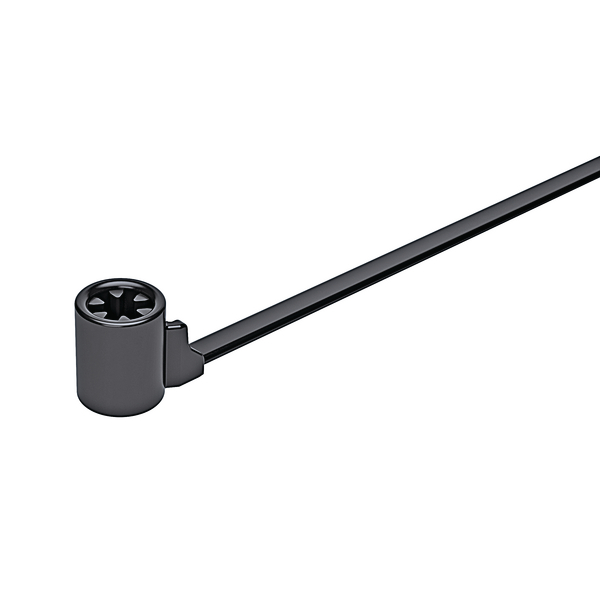

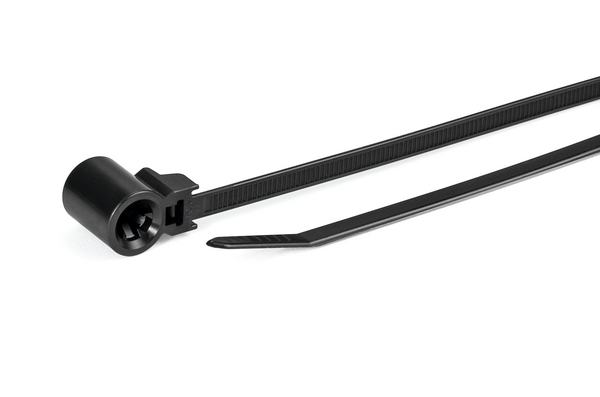

Fixing tie for stud, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Cikkszám 157-00252
| T50SOSSBS5E-2-PA66HS-BK
|
Részletek
- One-piece fixing ties
- High specification materials
- Superior design
- Suitable for complex applications
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Key product features | products for automatic tools |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSSBS5E-2-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | For cable routing alongside the stud |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | No |
| Short Description | One-piece fixing tie 160x4.6 black |
| Tie Closure | plastic pawl |
| Type | T50SOSSBS5E-2 |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ | 1.0-35.0mm |
| Bundle ∅ min. | 1.0mm |
| Height (H) | 1.35mm |
| Height (H2) | 15mm |
| Length (L) | 161.0mm |
| Max Stud Length | 14.0mm |
| Min Stud Length | 8.0mm |
| Min.Tensile Strength | 225N |
| Stud ∅ | 0.2" |
| Stud ∅ | 5.0 mm |
| Thickness (T) | 1.35mm |
| Weight/Unit | 0.002206kg |
| Width (W) | 4.7mm |
| Width (W2) | 12.0mm |
Letöltés
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026540467 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01628m³ |
| Packaging 1 - Weight (kg) | 1.146kg |
| Packaging 1 - Width (m) | 0.465m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.988kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 140.856kg |
| Packaging 4 - Width (m) | 0.8m |
