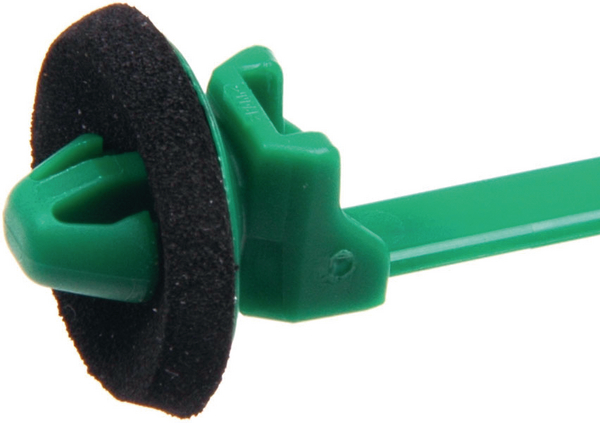

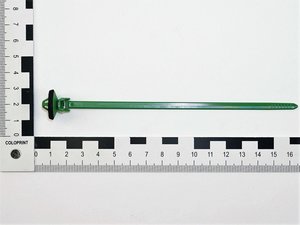

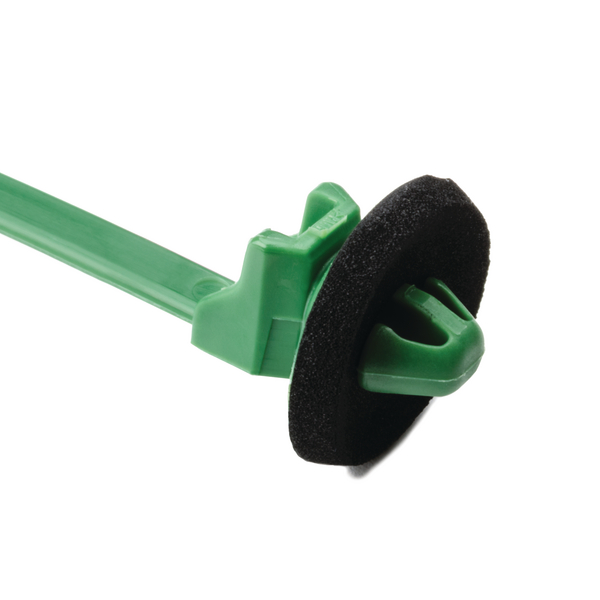

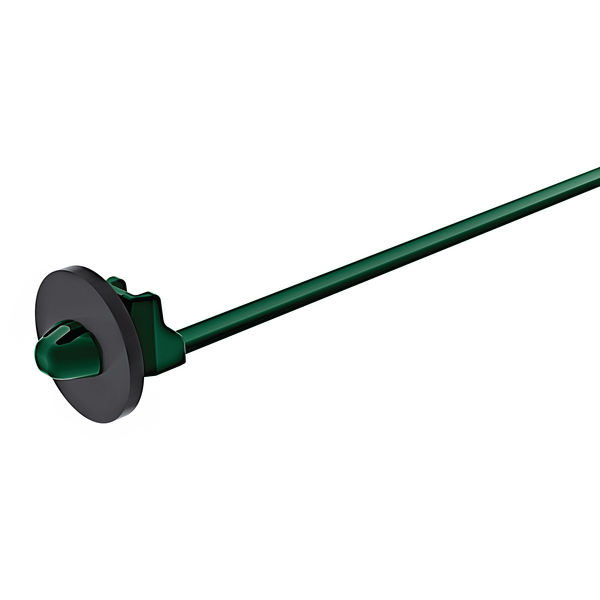

Fixing tie for hole (round), outside serrated, ∅1.5-30.0mm, green, 500pcs.
Cikkszám 126-03100
| T50SOSSFT6.5E-MDL-PA66HS-GN
|
Részletek
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts the tie for pressures from various directions
- Cable tie head always situated in defined position
- Cellular rubber seal minimises access of dust, dirt and water
- T50SOSSFT6,5E-MD with lasered seal and T60SOSSFT6,5E-MD made from PA6.6 HS are tested acc. IEC60529 and fulfil IP67
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | The parts are mainly used in the automotive industry, e.g. for door harnesses. |
| Anti rotation (Yes / No) | NO |
| Colour | Green (GN) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Key product features | sealed, products for automatic tools |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSSFT6.5E-MDL-PA66HS-GN |

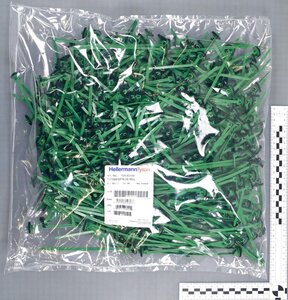

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for Round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc, sealed, PA66HS 160x4.6 mm green |
| Tie Closure | plastic pawl |
| Type | T50SOSSFT6.5E-MDL |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 30.0mm |
| Bundle ∅ | 1.5-30.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 16.0mm |
| Length (L) | 158.8mm |
| Length of Fir Tree | 7.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 - 1.8mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001554kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.6 - 1.8 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026228266 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.46m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01842m³ |
| Packaging 1 - Weight (kg) | 0.813kg |
| Packaging 1 - Width (m) | 0.445m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 5.698kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 89.376kg |
| Packaging 4 - Width (m) | 0.8m |
