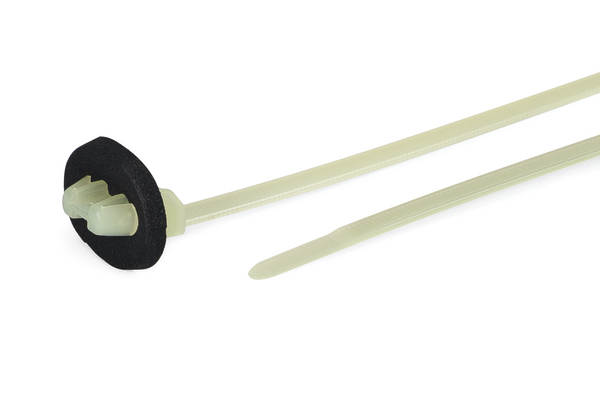

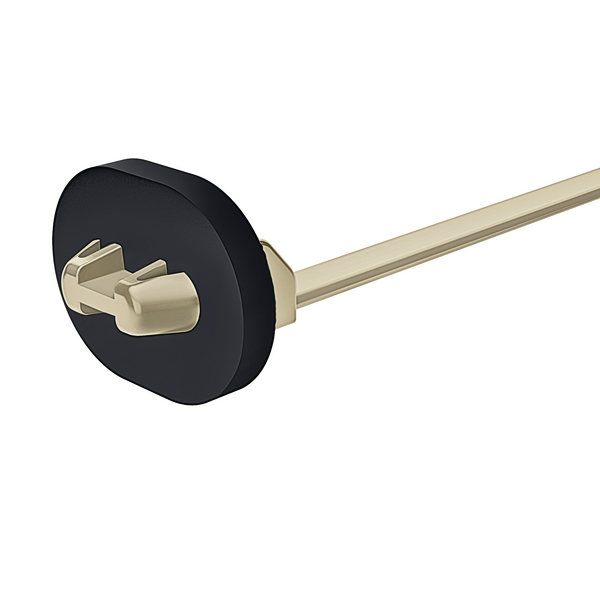

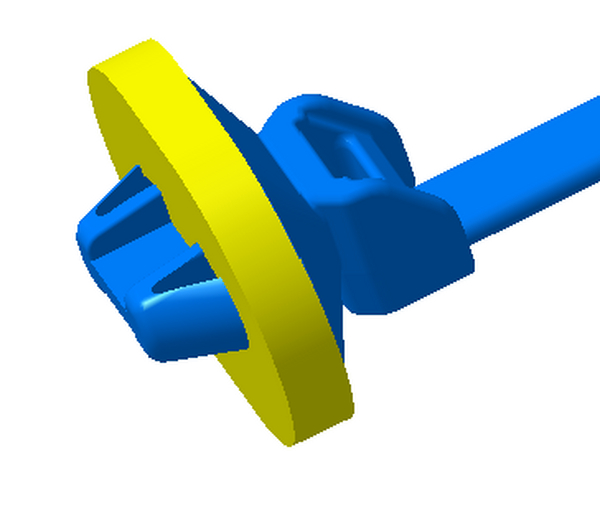

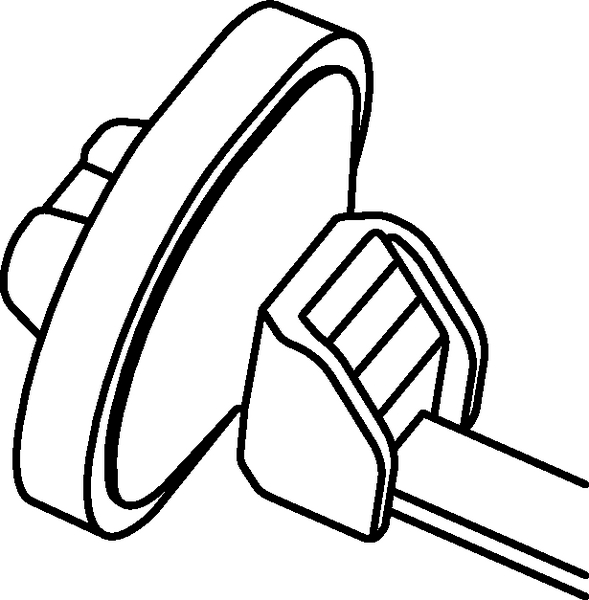

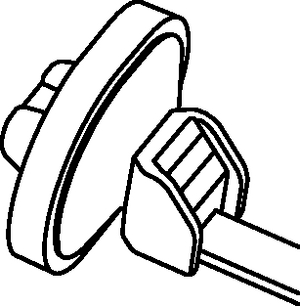

Fixing tie for hole (oval), outside serrated, ∅1.6-30.0mm, natural, 500pcs.
Cikkszám 126-00076
| T60SOSSFT65x130-E-MD-PA66HS-NA
|
Részletek
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts the tie for pressures from various directions
- Cable tie head always situated in defined position
- Cellular rubber seal minimises access of dust and dirt
- SFT versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | With a diverse range of fixing possibilities (from 0.6mm to 2.0mm panel thickness) this range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building. |
| Colour | Natural (NA) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Key product features | sealed |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T60SOSSFT65x130-E-MD-PA66HS-NA |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for Oval holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed, for Oval Holes |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing tie 157,6 x5,5 mm, arrowhead, heat stabilised, natural |
| Tie Closure | plastic pawl |
| Type | T60SOSSFT65x130-E-MD |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 30.0mm |
| Bundle ∅ | 1.6-30.0mm |
| Bundle ∅ min. | 1.6mm |
| Disc ∅ | 16.0 x 22.0mm |

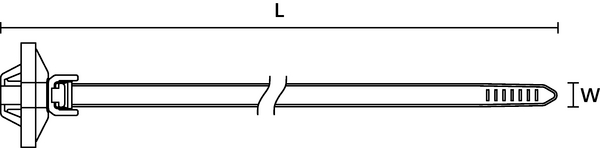

| Length (L) | 157.6mm |
| Min.Tensile Strength | 300N |
| Panel Thickness max. | 0.6 - 2.0mm |
| Thickness (T) | 1.35mm |
| Weight/Unit | 0.002163kg |
| Width (W) | 5.5mm |
| for Hole ∅ (FH) | 6.5 x 13.0 mm |
| for Panel Thickness min - max | 0.6 - 2 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | SG |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026297033 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.1215kg |
| Packaging 1 - Width (m) | 0.45m |

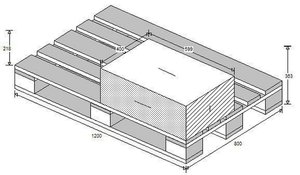

| Packaging 3 - Height (m) | 0.218m |
| Packaging 3 - Length (m) | 0.599m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0522m³ |
| Packaging 3 - Weight (kg) | 5.236kg |
| Packaging 3 - Width (m) | 0.4m |

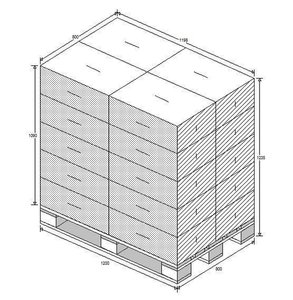

| Packaging 4 - Height (m) | 1.234m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.185m³ |
| Packaging 4 - Weight (kg) | 125.72kg |
| Packaging 4 - Width (m) | 0.8m |
