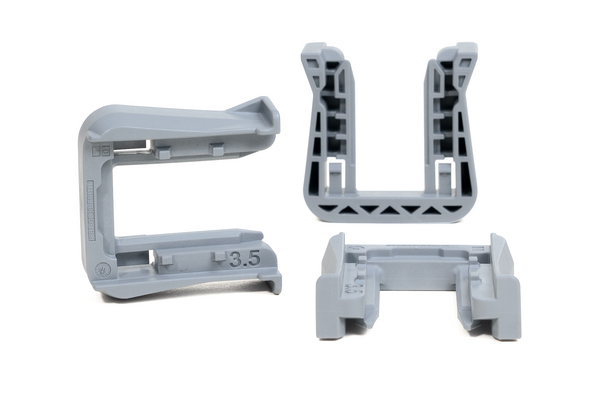

Fixing slider for connectors, T=3.5mm, grey, 2000pcs.
Cikkszám 151-02379
| FSC3.5-PBTGF30-GY
|
Részletek
- Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)

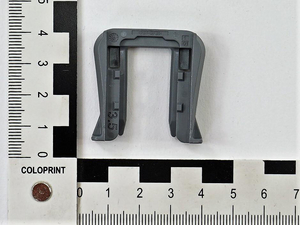

- Panel thickness is marked on the slider
- Permanent fixation of the connectors in the mounting hole by using the slider
- These parts are also available in V0 material (flame retardent) e.g. for public transport
- Fixing slider fit for the Aptiv connector XS and SP series
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
Application | The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it. |
Colour | Grey (GY) |
Material | Polybutylene Terephthalate glass-fibre reinforced (PBTGF30) |
PART DESCRIPTION | FSC3.5-PBTGF30-GY |
Pack Cont. | 2000pcs. |

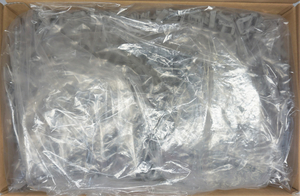

Package Content packed in | bag |
Product Family | Fixing Slider C, 3.5 mm CTCS-series |
Product Group | Connector Accessory Fixing Slider, Group C |
Type | FSC3.5 |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026607955 |
Packaging 1 - Height (m) | 0.8m |
Packaging 1 - Length (m) | 0.6m |
Packaging 1 - Qty | 2000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.192m³ |
Packaging 1 - Weight (kg) | 10.685411kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.184m |
Packaging 3 - Length (m) | 0.58m |
Packaging 3 - Qty | 2000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0406m³ |
Packaging 3 - Weight (kg) | 11.285411kg |
Packaging 3 - Width (m) | 0.38m |
Packaging 4 - Height (m) | 1.248m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 48000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.198m³ |
Packaging 4 - Weight (kg) | 291.84kg |
Packaging 4 - Width (m) | 0.8m |
