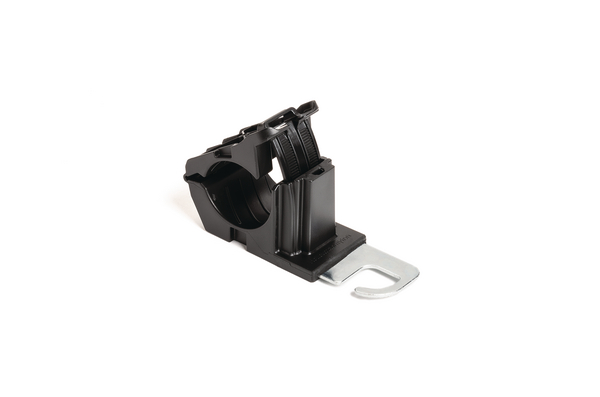

P-clamp short, Dmin=19.4mm, Dmax=36.0mm, ∅5.6 mm, 180°, black, 160pcs.
Cikkszám 151-03057 | RCCHANGER-PA66HIRHSUV/ZN-BK | Részletek

Impact modified, heat and UV stabilized PA66 provides long-term durability in solar applications.
One-piece ratchet closure design allows for easy installation during pre- or final assembly.
Release feature allows for quick adjustments and maintenance.
First Solar specific steel mounting hanger tolerates high torque and is treated to resist chemicals.

Felvétel a figyelőlistára

Kérje egyedi ajánlatát most

Ajánlatkérés

Keressen egy forgalmazót az Ön közelében

Downloads

More products in this product group:

Ratchet P-Clamp >

Base Data

Application	The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour	Black (BK)
Description	The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
Fixation Method	Mounting Hanger
Key product features	removable, releasable, vibration absorbing, for multiple routing
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Zinc plated (ZN)
PART DESCRIPTION	RCCHANGER-PA66HIRHSUV/ZN-BK
Pack Cont.	160pcs.
Package Content packed in	box
Product Family	For bundle diameters from 19.4 mm to 36.0 mm, C-Series
Product Group	Ratchet P-Clamp
Type	RCCHANGER
Variant	Short

Product Dimensions

Angle	180
Bundle Diameter max (metric)	36.0mm
Bundle ∅	19.4-36.0mm
Bundle ∅ min.	19.4mm
Height (H)	43.2mm
Height (H2)	69.5mm
Length (L)	155.3mm

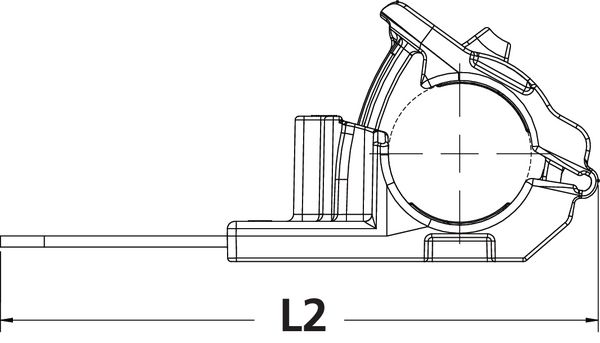

Length (L2)	101.7mm
Min.Tensile Strength	445N
Weight/Unit	0.038kg

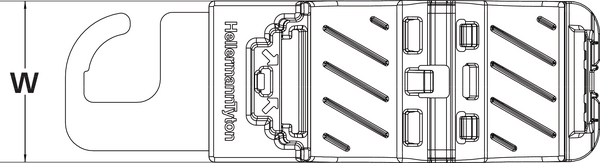

Width (W)	34.9mm
Width (W2)	30.0mm
for Hole ∅ (FH)	5.6 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging


Country of Origin	US
Customs Number	39269097
GTIN-13 / EAN	4031026630823
Packaging 1 - Height (m)	0.203m
Packaging 1 - Length (m)	0.6m
Packaging 1 - Qty	160
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.04762m³
Packaging 1 - Weight (kg)	6.080001kg
Packaging 1 - Width (m)	0.391m
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.606425m
Packaging 3 - Qty	160
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Weight (kg)	6.850001kg
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Height (m)	1.239m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	2400
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.189m³
Packaging 4 - Weight (kg)	123.75kg
Packaging 4 - Width (m)	0.8m
