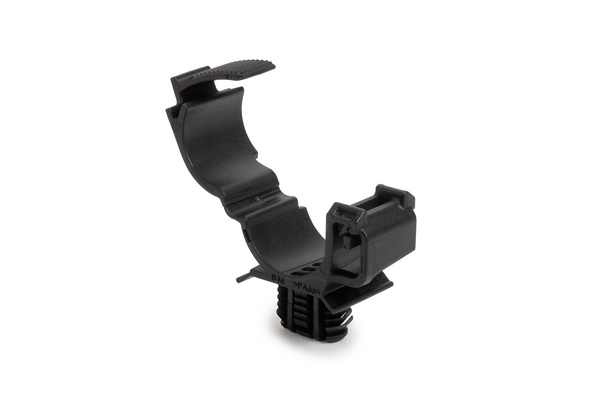

Ratchet O-Clamp
Cikkszám 151-04353
| ROC18.5-22.5FT9X17-PA66HIRHSUV-BK
|
Részletek
| Bundle Diameter max (metric) | 22.5mm |
| Bundle ∅ | 18.5-22.5mm |
| Bundle ∅ min. | 18.5mm |
| Fixing Hole Shape | Oval |
| Height (H) | 46.0mm |
| Length (L) | 37.0mm |
| Min.Tensile Strength | 445N |
| Panel Thickness max. | 0.6 - 6.75mm |
| Weight/Unit | 0.007kg |
| Width (W) | 20.5mm |
| for Hole ∅ (FH) | 9.0 x 17.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026752556 |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 7.77kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 15000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 137.55kg |
| Packaging 4 - Width (m) | 0.8m |
