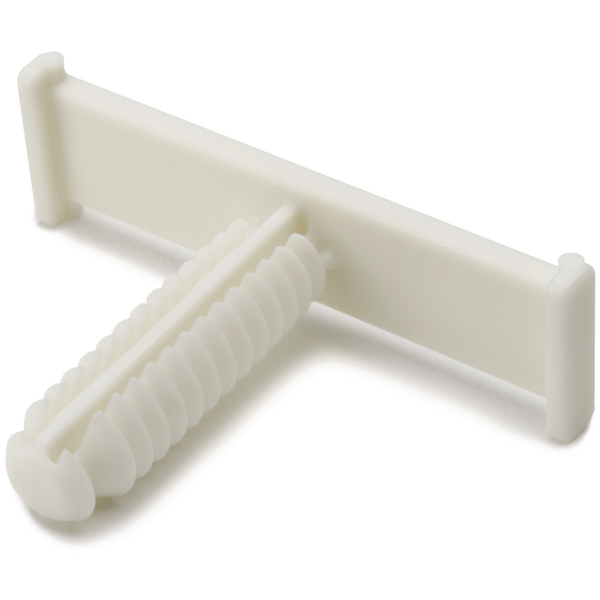

Bundling clip for hole (round), L=39.3mm, natural, 2000pcs.
Cikkszám 151-00651 | TC6FT6LG-PA66HIRHS-NA |  Részletek

    Felvétel a figyelőlistára

    Kérje egyedi ajánlatát most

     Ajánlatkérés
    Colour Natural (NA)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TC6FT6LG-PA66HIRHS-NA
    Pack Cont. 2000pcs.
    Package Content packed in box
    Product Family Round holes
    Product Group Bundling Clips with Fir Tree
    Type TC6FT6LG
    Bundling Bar Length 1.55"
    Bundling Bar Length 39.3mm
    Fixing Hole Shape Circular
    Height (H) 26.60mm
    Height (H2) 23.10mm
    Length (L) 38.1mm
    Panel Thickness max. 0.7 - 18.0mm
    Weight/Unit 0.00132kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.2 - 6.8 mm
    for Panel Thickness min - max 0.7 - 18 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026338989
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.505m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0175m³
    Packaging 1 - Weight (kg) 2.640001kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 3.160001kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.145m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 56000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.099m³
    Packaging 4 - Weight (kg) 109.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
