EdgeClip-Series Type: T50SOSEC34E

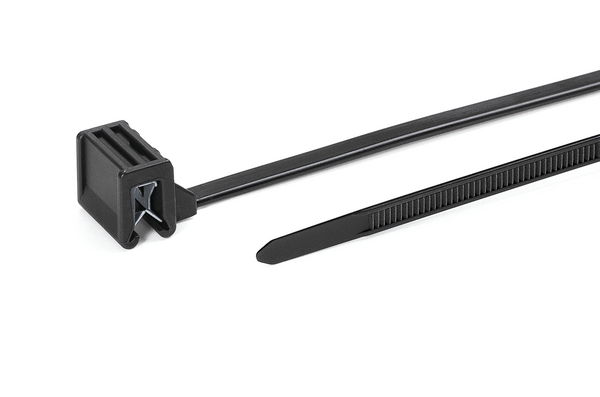

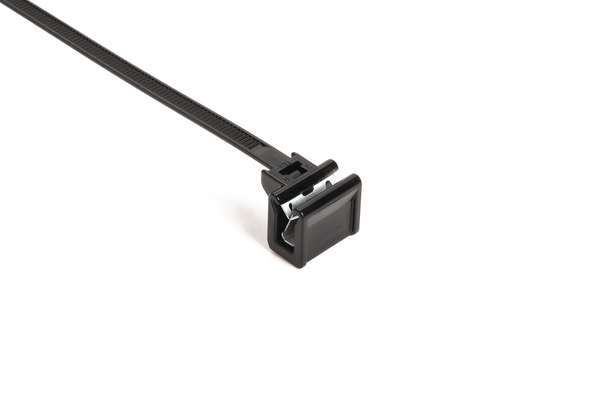

1-Piece Fixing Tie with EdgeClip for parallel cable routing to the edge.

Képek (3)

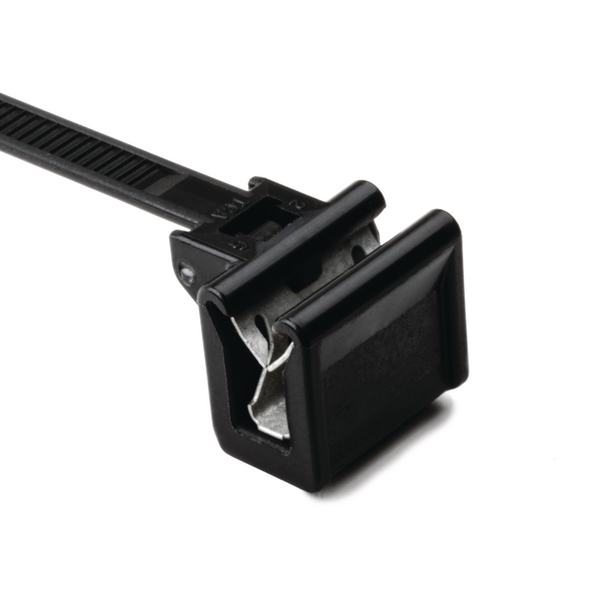

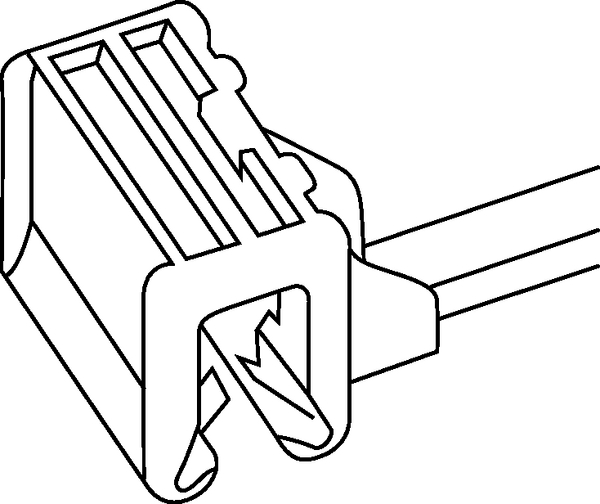

Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole

Felvétel a figyelőlistára

126-00036

Base Data

Application Tool

ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP, FTS_pro

Colour

Black (BK)

Description

HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.

Fixation Method

Edge Clip

Identification Plate Position

none

Key product features

products for automatic tools

Material

Polyamide 6.6, heat stabilised (PA66HS)

Pack Cont.

500pcs.

Package Content packed in

bag

PART DESCRIPTION

T50SOSEC34E-PA66HS-BK

Product Family

EdgeClip-Series

Product Group

1-piece fixing ties for edges

Releasable Closure (Yes/No)

Short Description

Fixing tie 155x4.6 mm black

Tie Closure

plastic pawl

Variant

Outside Serrated

Product Dimensions

Bundle Diameter max (metric)

35.0mm

Bundle ∅

1.0-35.0mm

Bundle ∅ min.

1.0mm

for Panel Thickness min - max

1 - 3 mm

for Panel Thickness min - max

0 - 0.1 "

Height (H)

1.35mm

Length (L)

155.0mm

Length (L2)

15.0mm

Min.Tensile Strength

180N

Panel Thickness max.

1.0 - 3.0mm

Weight/Unit

0.002394kg

Width (W)

4.6mm

Specifications

ELV compliant (Article 4 - 2)

YES

Flammability

UL 94 V2

Hazardous Goods

Operating Temperature

-40 °C to +105 °C

Specifications

UL Listed (US and Canada)

UL Recognized (US and Canada)

Logistics and Packaging

Country of Origin

Customs Number

39269097

GTIN-13 / EAN

4031026262635

Packaging 1 - Height (m)

0.08m

Packaging 1 - Length (m)

0.395m

Packaging 1 - Qty

500

Packaging 1 - Type

bag

Packaging 1 - Volume (m³)

0.01422m³

Packaging 1 - Weight (kg)

1.226135kg

Packaging 1 - Width (m)

0.45m

Packaging 3 - Height (m)

0.368m

Packaging 3 - Length (m)

0.584m

Packaging 3 - Qty

6000

Packaging 3 - Type

box

Packaging 3 - Volume (m³)

0.083m³

Packaging 3 - Weight (kg)

15.53362kg

Packaging 3 - Width (m)

0.386m

Packaging 4 - Height (m)

1.248m

Packaging 4 - Length (m)

1.2m

Packaging 4 - Qty

72000

Packaging 4 - Type

pallet

Packaging 4 - Volume (m³)

1.198m³

Packaging 4 - Weight (kg)

207.384kg

Packaging 4 - Width (m)

0.8m

More Information

ETIM 7.0 Key

EC000046

ETIM 8.0 Key

EC000046

ETIM 9.0 Key

EC000046

UNSPSC Key

39121717
