Thermal Transfer Printer 300 dpi
Cikkszám 556-00400
| TT431-PL-GY
|
Részletek
- Small to medium volume single sided printing
- Print on HellermannTyton cable markers and labels
- Uses standard ribbons
- Barcodes: standard and 2D
- Print speed up to 150 mm/s
- Adjustable label sensor
- Multiple language selection
- Windows drivers: 32/64 bit for Windows Vista, Windows 7, 8 and 10
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | The TT431 thermal transfer printer is perfect for printing on HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. Thanks to its low weight and compact construction, the TT431 integrates seamlessly into any workstation. It is easy to use due to its intuitive colour LCD touch display and clear status messages which can be shown in multiple languages. The optional cutter and perforator make this printer ideal for a wide range of applications. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be. For optimal operation, we recommend our TagPrintPro software. |
| Colour | Grey (GY) |
| Material | Plastic (PL) |
| PART DESCRIPTION | TT431-PL-GY |
| Pack Cont. | 1pc. |
| Package Content packed in | carton |
| Print resolution DPI | 300dpi |
| Product Family | TT431 Small to medium volume printing |
| Product Group | Thermal transfer printer |
| Short Description | Thermal Transfer Printer 300 dpi |
| Type | TT431 |
| Depth (D) | 322mm |
| Height (H) | 189mm |
| L x H x W | 322 mm x 189 mm x 253 |
| Label Width Max (imperial) | 4.16" |
| Label Width Min (imperial) | .39" |
| Label Width min - max | 10 - 105.7 mm |
| Print Material Height Max (metric) | 4000mm |
| Print Material Height Min (metric) | 5.00mm |
| Print Material Width Max (metric) | 105.7mm |
| Print Material Width Min (metric) | 10.00mm |
| Print Method | thermal transfer print |
| Weight/Unit | 4.55kg |
| Width (W) | 253mm |
Letöltés
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Interfaces | USB 2.0, Ethernet 10/100 Base T, RS232 |
| Max. Print Width | 105.70mm |
| Print Head Type | 300 dpi, flat type |
| Print Speed | up to 150 mm/s |
| Printer Memory | 256MB RAM |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | 2014/35/EU, DIN EN 55024:2011-09, DIN EN 55024:2016-05, DIN EN 55032:2012-12, DIN EN 55032:2016-02, DIN EN 55032 rectification 1:2013-04, DIN EN 61000-6-2:2006-03, DIN EN 61000-6-2 rectification 1:2011-06, EN 55024:2011-09, EN 61000-6-2, FCC eCFR 47 FCC part 15 - subpart B, limit class A |
| Supported Barcodes | Standard and 2D |
| Country of Origin | DE |
| Customs Number | 84433210 |
| Dimensions W x H x D | 253 mm x 189 mm x 322 mm |
| GTIN-13 / EAN | 4031026613154 |
| Packaging 3 - Height (m) | 0.325m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0469m³ |
| Packaging 3 - Weight (kg) | 5.05kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.12m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 18 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.075m³ |
| Packaging 4 - Weight (kg) | 111.9kg |
| Packaging 4 - Width (m) | 0.8m |
TagPrintPro4.0-EMEA
556-00059
TT External Reel Holder
556-00451
S430 Cutter
556-00452
P430 Perforator
556-00456
TTER120
556-00013
TT Printer Adapter-PL-BK
556-00012

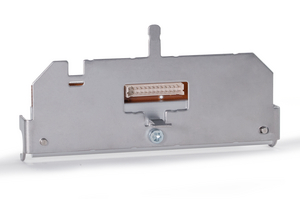

TT430/TT431 300dpi Printhead-DIV-BK
556-00453

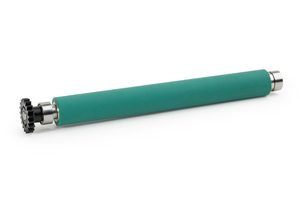

TT430/TT431 Print Roller-DIV-BK
