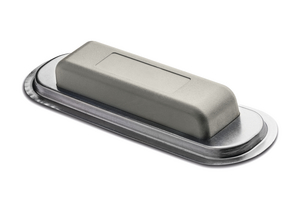

RFID transponder, 865-956 MHz (UHF), bolt-on, 60.00x18.00mm, H=8.00mm, grey, 250pcs.
Cikkszám 556-00852
| HardTag Solid 60x18-PC/ABS-GY
|
Részletek
- Identification element with integrated UHF RFID transponder according to EPC EPC Class 1 Gen 2
- Carrier material made of impact-resistant plastic
- Mounting holes for attachment using bolts, screws, nails or rivets
- Suitable for application on all surfaces
- Can be attached with the help of adhesive
- Clear identification of objects and / or locations through unique numbering systems
- Faster, more secure and error-free data management
- Robust and durable with data retention
- Relatively large range (depending on the circumstances) thanks to the UHF frequency
- Bulk acquisition of up to 500 transponders per second possible (depending on infrastructure)
- Different colours possible
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
Application | The universally applicable identification elements of ToughLine product group are is ideally suited for the identification of objects and places indoors and outdoors their innovative design. Due to their robustness, the marking element can bis fixed permanently in a durable way to many objects and places. RFID elements of ToughLine product group are ideally suited for the clear identification of pallets or containers. The robust design allows the those identification elements to withstand harsh conditions and rough treatment. An application would be the labeling of disposal bins (garbage cans, garbage cans, garbage containers). |
Colour | Grey (GY) |
Fixation Method | bolt-on |
Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS) |
PART DESCRIPTION | HardTag Solid 60x18-PC/ABS-GY |
Pack Cont. | 250pcs. |
Package Content packed in | pack |
Product Family | ToughLine – Ultra high frequency (UHF), bolt-on, blank |
Product Group | Hard tags with RFID transponder |
Short Description | RFID identification element 60x18 mm, 865-956 MHz (UHF), PC/ABS, grey |
Type | HardTag Solid 60x18 |
CE Certification | Yes |
Data Retention | 50 years |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
IP-Rating | IP68, IP69k |
Operating Temperature | -40 °C to +80 °C |
ROHS compliant | Yes |
Radio protocol | ISO 18000-6C, EPC Gen2 |
Resistance to | Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature) |
Specifications |
![]() ![]() |
Specifications | IEC 62262: IK07, IEC 68-2-29, IEC 68-2-6 |
Tamper proof | No |
Type of RFID chip | Impinj Monza R6 |
Write endurance | 100000 cycles |
Country of Origin | MY |
Customs Number | 85235910 |
GTIN-13 / EAN | 4031026661872 |
Packaging 1 - Height (m) | 0.065m |
Packaging 1 - Length (m) | 0.235m |
Packaging 1 - Qty | 250 |
Packaging 1 - Type | carton |
Packaging 1 - Volume (m³) | 0.0029m³ |
Packaging 1 - Weight (kg) | 3.75kg |
Packaging 1 - Width (m) | 0.19m |
Packaging 3 - Height (m) | 0.156m |
Packaging 3 - Length (m) | 0.403m |
Packaging 3 - Qty | 1000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0155m³ |
Packaging 3 - Weight (kg) | 15.5kg |
Packaging 3 - Width (m) | 0.247m |
Packaging 4 - Height (m) | 1.236m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 42000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.187m³ |
Packaging 4 - Weight (kg) | 672.0kg |
Packaging 4 - Width (m) | 0.8m |
Storage Temperature | -40 °C to +80 °C |
