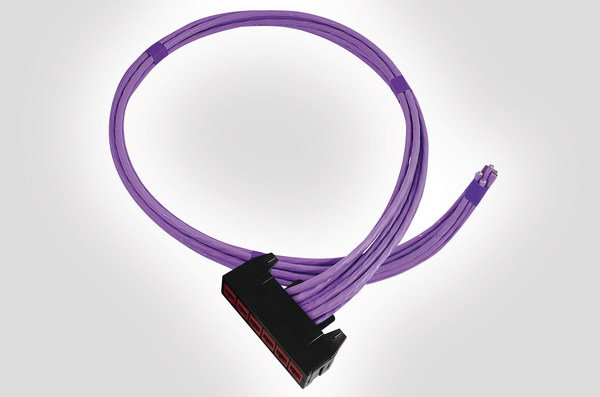

RapidNet 6 Port Category 6 Short Body Cassette to Bare End
Cikkszám 859-11235
| RN06UC6-CBBERD-10.0M
|
Részletek
- Exceeds Category 6 performance standards
- Designed for use with HellermannTyton Angled RapidNet Panels
- Factory pre-terminated and tested
- Reduce installation times by up to 85%
- Ideal solution where lengths are unknown or access is limited
- 5* different colour options
- Backward compatible with Category 5e, Category 5 and voice
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
Colour | Violet (VT) |
Connector Colour | Red (RD) |
Connector Type | RJ45 UTP |
Description | The Short Body RapidNet Cassette has been designed for use with HellermannTyton Angled and Standard RapidNet Panels and the shorter 32mm cassette body depth allows the RapidNet solution to be used in areas with limited access or restricted space where a standard RapidNet Cassette cannot be installed. The RapidNet Category 6 UTP Short Body Cassette to Bare End is pre-terminated with 6 Category 6 UTP keystone jacks in a cassette at one end and a single loom of 6 cable bundles. The RapidNet 6 port Short Body cassette to bare end option presents 24 ports in 1U of space when using an angled or standard RapidNet panel. The Short Body cassette to bare end option is specifically designed for projects where space between rooms is limited or lengths are uncertain at the planning stage. The bare end provides several connectivity options which can be terminated in the comms room or to outlets at the desk. The Category 6 UTP keystone jacks are available in 5 colours (Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE)). This allows for differentiation of looms at the patch panel aiding identification access levels, paths, routes or systems within the network. |
PART DESCRIPTION | RN06UC6-CBBERD-10.0M |
Pack Cont. | 10.0m |
Performance Category | Category 6 (Class E) |
Port count | 6 |
Product Family | Short Body Cassette to Bare End |
Product Group | RapidNet 6 Port Category 6 |
Short Description | RapidNet 6 Port Category 6 Short Body Cassette to Bare End |
Technical Description | The RapidNet Category 6 UTP solution is designed using U-UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The Short Body cassette has a 32mm depth and is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Short Body Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed all ISO/EIA 11801:2002 1.1 and ANSI/TIA/EIA 568-C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details. |
Type | RN06UC6-CBBERD-10.0M |
