Cable tie outside serrated, 267.0x7.6mm, ∅6.4-73.0mm, black, 2000pcs.
Art.-No. 132-00035 | BT130RDP-PA66HIRHSUV-BK |  Details

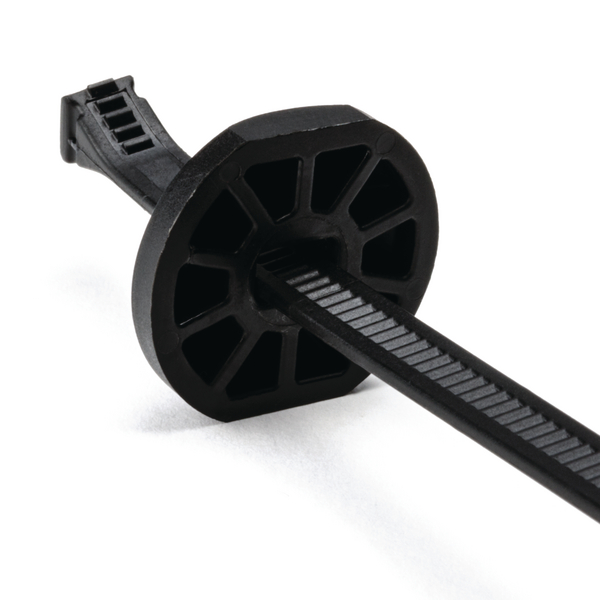

Two-piece button head cable tie allows parallel entry and exit through the head.

    • Both sides serrated cable tie
    • BHT-Series with round head for larger bearing area
    • BHT375 for centred position
    • CT- and LHT-Series with small squared head for restricted space areas
    • Tensioning with application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Button Head
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Material Head Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION BT130RDP-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Product Family Chassis ties
    Product Group Cable ties for single hole application
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type BT130RDP
    Variant Outside Serrated
    Bundle Diameter max (metric) 73.0mm
    Bundle ∅ min. 6.4mm
    Length (L) 267.0mm
    Min.Tensile Strength 578N
    Width (W) 7.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026726908
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Weight (kg) 3.36kg
    Packaging 3 - Width (m) 0.39528749999999997m
    Packaging 4 - Qty 60000
    UNSPSC Key 39121703
