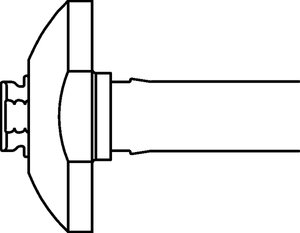

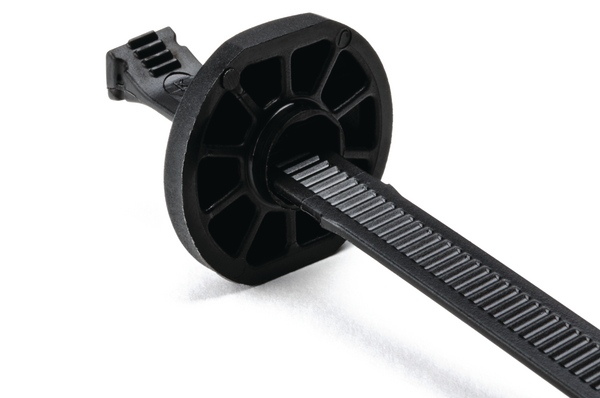

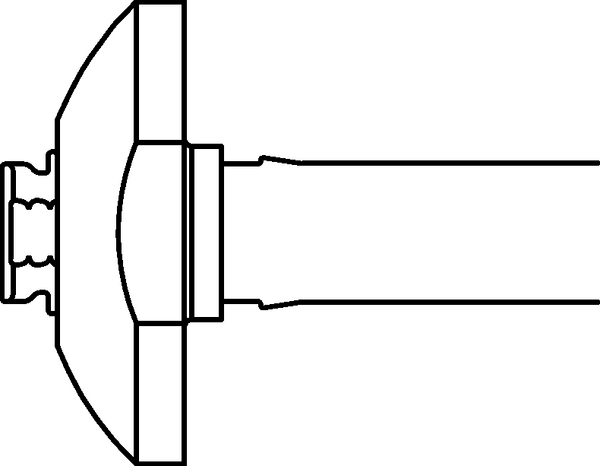

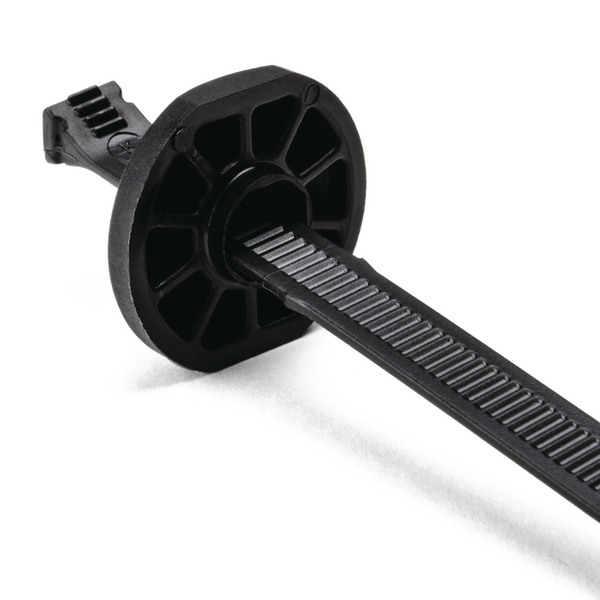

Cable tie outside serrated for direct fixation, 381.5x7.6mm, ∅6.4-110.0mm, black, 50pcs.
Art.-No. 132-00009
| BT130LDP-PA66HIRHSUV/PA66HS-BK
|
Details
This product is not available anymore.
- Both sides serrated cable tie
- BHT-Series with round head for larger bearing area
- BHT375 for centred position
- CT- and LHT-Series with small squared head for restricted space areas
- Tensioning with application tool
Request your individual offer now
Request quote
More products in this product group:
| Application | Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails. |
| Cable Tie | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Colour | Black (BK) |
| Fixation Method | Button Head |
| Identification Plate Position | none |
| Key product features | for direct fixation |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, heat stabilised (PA66HS) |
| Material Head | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | BT130LDP-PA66HIRHSUV/PA66HS-BK |
| Pack Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Chassis ties |
| Product Group | Cable ties for single hole application |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | BT130LDP |
| Variant | Outside Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026421971 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00432m³ |
| Packaging 1 - Weight (kg) | 0.300401kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 3 - Height (m) | 0.20954999999999998m |
| Packaging 3 - Length (m) | 0.6048375m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0501m³ |
| Packaging 3 - Weight (kg) | 7.07kg |
| Packaging 3 - Width (m) | 0.39528749999999997m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 123.87kg |
| Packaging 4 - Width (m) | 0.8m |
