19/11/2024

Cable tie outside serrated, 244.4x5.6mm, ∅6.4-66.7mm, black, 50pcs.
Art.-No. 132-00010 | BT105R-PA66HS/PA66HIRHSUV-BK |  Details

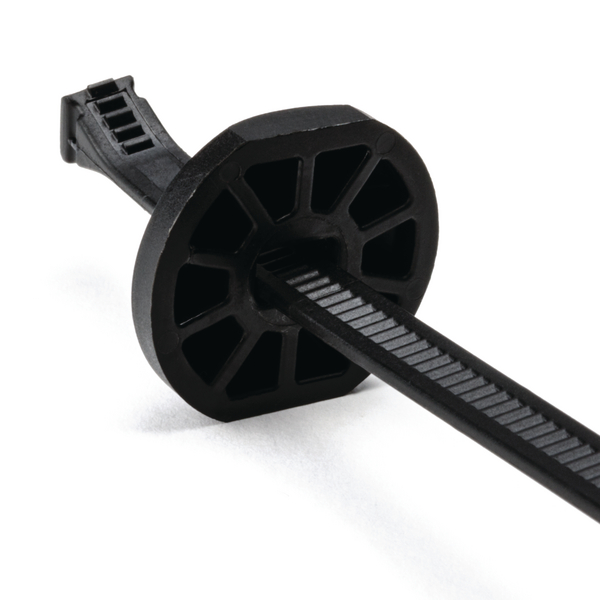

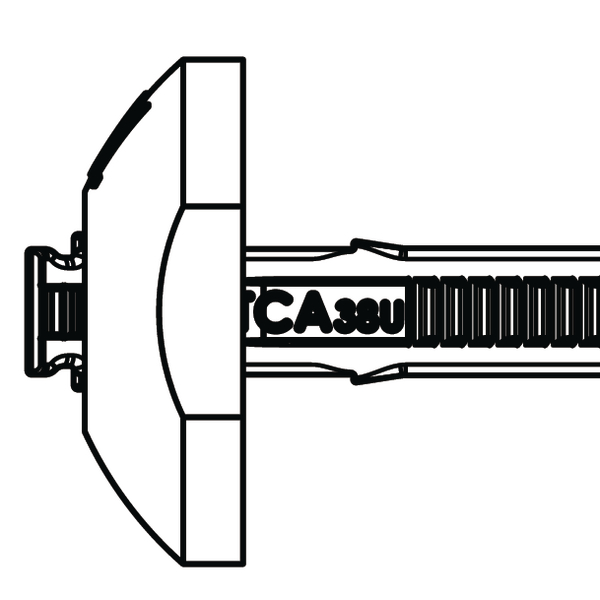

Two-piece button head cable tie allows parallel entry and exit through the head.

    • Both sides serrated cable tie
    • BHT-Series with round head for larger bearing area
    • BHT375 for centred position
    • CT- and LHT-Series with small squared head for restricted space areas
    • Tensioning with application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Button Head
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Material Head Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION BT105R-PA66HS/PA66HIRHSUV-BK
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Chassis ties
    Product Group Cable ties for single hole application
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type BT105R
    Variant Outside Serrated
    Bundle Diameter max (metric) 66.7mm
    Bundle ∅ min. 6.4mm
    Disc ∅ 0.87"
    Disc ∅ 22.2mm
    Height (H) 7.0mm
    Length (L) 244.4mm
    Min.Tensile Strength 467N
    Thickness (T) 1.3mm
    Width (W) 5.6mm
    for Hole ∅ (FH) 6.0 - 17.3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026424811
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 4.34kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Qty 40000
    UNSPSC Key 39121703
