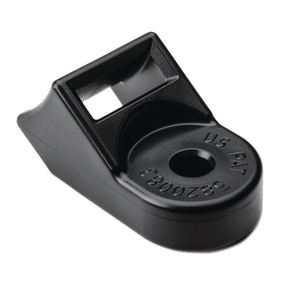

Cable tie mount for screw fixation, Wmax=12.7mm, ∅4.7 mm, ∅4.8 mm, #10 (M5) Screw, black, 100pcs.
Art.-No. 151-00134
| HDM19-PA66HIRHSUV-BK
|
세부
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 13.5 mm width
- Easy maintenance of bundle by simply changing the cable tie
More products in this product group:
| Application | These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Mounting Screw Type | #10 (M5) Screw |
| PART DESCRIPTION | HDM19-PA66HIRHSUV-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Standard torque mounts |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Type | HDM19 |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Max. Torque (kgf-cm) | 132.5kgf-cm |
| Max. Torque (lbf-In) | 9.583lbf-ft |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026312880 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.489478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.60801m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0506m³ |
| Packaging 3 - Weight (kg) | 13.7kg |
| Packaging 3 - Width (m) | 0.39688m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 327.4kg |
| Packaging 4 - Width (m) | 0.8m |
