Fixing tie for hole (round), inside serrated, ∅10.0-105.0mm, grey, 200pcs.
Art.-No. 156-01099 | T120RDHDM8-PA46-GY 세부

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
Show more
Application Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.
Colour Grey (GY)
Fixation Method Screw Mount
Identification Plate Position none
Material Polyamide 4.6 (PA46)
Mounting Screw Type M8 Screw

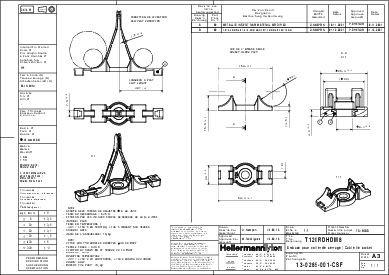

PART DESCRIPTION T120RDHDM8-PA46-GY
Pack Content 200pcs.
Package Content packed in box
Product Family DHDM-Series for parallel routing
Product Group 2-piece fixing ties for heavy duty applications, for screws
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120RDHDM8
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ min. 10.0mm
Height (H) 15.5mm
Length (L) 385.0mm
Length (L2) 59.4mm
Min.Tensile Strength 535N
Thickness (T) 1.8mm
Width (W) 7.6mm
Width (W2) 1.0"
Width (W2) 25.4mm
for Hole ∅ (FH) 8.4 mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +130 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026463469
UNSPSC Key 39121717
