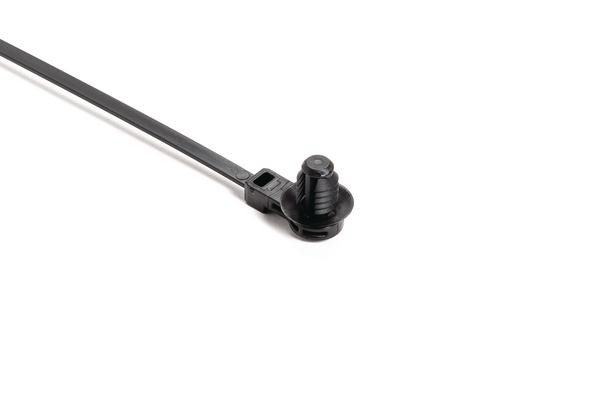

Fixing tie for hole (round), ∅2.0-50.0mm, black, 3000Carton
Art.-No. 157-00350 | T50ROSM10SO12.5B-PA66HIRHSUV-BK | 세부

Bundling and fixing solution
Ideal combination of materials and design
Different positions of the fixing anchor are available to fit installation space

More products in this product group:

Cable Tie	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Cable ∅ max	50mm
Cable ∅ min	2.0mm
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50ROSM10SO12.5B-PA66HIRHSUV-BK
Pack Content	3000Carton
Package Content packed in	carton
Product Family	With offset 12.5 and 25.0 mm
Product Group	1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
Releasable Closure (Yes/No)	No
Type	T50ROSM10SO12.5B

Attach to Diameter	5/8"
Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	2.0mm
Depth (D)	17mm
Disc ∅	17.0mm
Disc ∅	.67"
Height (H)	21.0mm
Hole Depth	0.6mm
Hole Depth	6.0mm
Length (L)	216.4mm
Length (L2)	12.5mm
Min.Tensile Strength	225N
Offset Length	12.5mm
Panel Thickness	0.02 - 0.24"
Panel Thickness max.	0.6 - 6.0mm
Panel Thickness max. (imperial)	0.24"
Panel Thickness min. (imperial)	0.02"
Width (W)	5.1mm
for Hole ∅ (FH)	7.6 - 8.4 mm, M10 x 1.5
for Panel Thickness min - max	0 - 0.2 "
for Panel Thickness min - max	0.6 - 6 mm
