Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 150-37799 | T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK | 세부

More products in this product group:

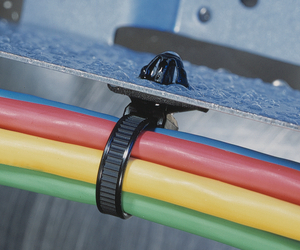

Application	The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Fixation Method	arrowhead
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	sealed
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	for round holes, sealed
Product Group	2-Pieces Fixing Ties with Arrowhead, with Disc, sealed
Tie Closure	plastic pawl
Type	T50ROSSFT6.5 16-3MD
Variant	Outside Serrated


Bundle Diameter max (metric)	45.0mm
Bundle ∅ min.	4.0mm
Disc ∅	16.0mm
Height (H)	1.3mm
Height (H2)	10mm
Length (L)	200mm
Length (L2)	11.6mm
Min.Tensile Strength	225N
Panel Thickness	0.10 " – 0.12"
Panel Thickness max.	2.5 - 3.0mm
Panel Thickness max. (imperial)	0.12"
Panel Thickness min. (imperial)	0.1"
Width (W)	4.6mm
Width (W2)	9.0mm
Width (W2)	0.35"
for Hole ∅ (FH)	6.1 - 7.0 mm
for Panel Thickness min - max	0.1 - 0.1 "
for Panel Thickness min - max	2.5 - 3 mm

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
