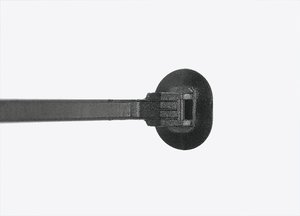

Fixing tie for hole (oval), outside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 157-01105 | T50SOS2DOP7X12-E-PA66HS-BK | 세부

This 1-piece fixing tie with fir tree design for oval holes features anti-twist protection.

More products in this product group:

1-piece fixing ties with fir tree, with disc >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie	Polyamide 6, heat stabilised (PA6HS)
Colour	Black (BK)
Fixation Method	Fir Tree for oval holes
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T50SOS2DOP7X12-E-PA66HS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	for oval holes
Product Group	1-piece fixing ties with fir tree, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50SOS2DOP7X12-E
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	35.0mm
Bundle ∅ min.	1.0mm
Disc ∅	16,0 x 21,0mm
Fixing Hole Shape	Oval
Length (L)	164.0mm
Min.Tensile Strength	225N
Panel Thickness	0.02 " – 0.24"
Panel Thickness max.	0.6 – 6.0mm
Panel Thickness max. (imperial)	0.24"
Panel Thickness min. (imperial)	0.023"
Thickness (T)	1.3mm
Width (W)	4.6mm
for Hole ∅ (FH)	7.0 x 12.0 mm
for Panel Thickness min - max	0.6 - 6 mm
for Panel Thickness min - max	0 - 0.2 "

Downloads

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026471525

More Information

UNSPSC Key

39121703
