Fixing tie with pipe/tube holder, ∅2.0-30.0mm, black, 250pcs.
Art.-No. 156-03056 | T50SOSFT7EIAHC2T-PA66HS/PA66HIRHS-BK | 세부

2-piece fixing tie, 360° rotatable, a cable tie in combination with an AHC to route and fix harnesses.

More products in this product group:

2-piece fixing ties with automatic harness clip >

Base Data

Application	Offering a simple and secure method of attaching cables together. Originally designed for the automotive industry, these products are used in a wide range of applications.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	for multiple routing, removable
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50SOSFT7EIAHC2T-PA66HS/PA66HIRHS-BK
Pack Content	250pcs.
Package Content packed in	bag
Product Family	AHC-Series
Product Group	2-piece fixing ties with automatic harness clip
Type	T50SOSFT7EIAHC2T

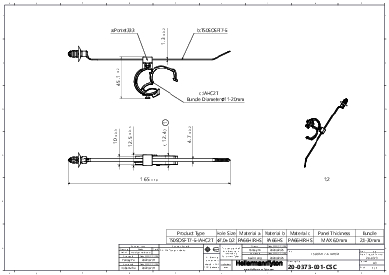

Product Dimensions

Attach to Ø	11.0-20.0
Bundle Diameter max (metric)	30.0mm
Bundle ∅ min.	2.0mm
Length (L)	165.0mm
Min.Tensile Strength	225N
Panel Thickness max.	0.6-6.0 mm
Thickness (T)	1.3mm
Width (W)	4.7mm
for Hole ∅ (FH)	6.8 - 7.2 mm
for Panel Thickness min - max	0.6 - 6 mm

Downloads

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026647746

More Information

UNSPSC Key

39121717
