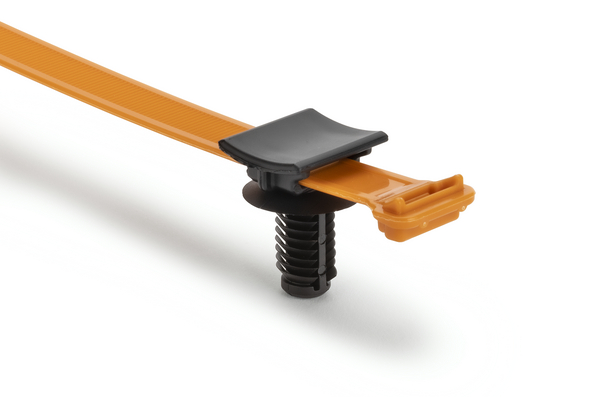

Fixing tie for hole (round), ∅9.4-82.6mm, orange/black, 100pcs.
Art.-No. 156-04037 | WSIFT9HCLG-PA66HIRHS/PA66HIRHSUV-OG/BK 세부

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more
Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Colour Orange (OG), High Voltage (HV), Black (BK)
Fixation Method Fir Tree
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION WSIFT9HCLG-PA66HIRHS/PA66HIRHSUV-OG/BK
Pack Content 100pcs.
Package Content packed in bag
Product Family Fir tree parts FT9
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure plastic pawl
Type WSIFT9HCLG
Bundle Diameter max (metric) 82.6mm
Bundle ∅ min. 9.4mm
Height (H) 1.4mm
Length (L) 307.0mm
Min.Tensile Strength 533N
Panel Thickness 0.04 - 0.50"
Panel Thickness max. 1.0 - 12.7mm
Panel Thickness max. (imperial) 0.5"
Panel Thickness min. (imperial) 0.04"
Width (W) 13.97mm
for Hole ∅ (FH) 8.75 - 9.25 mm
for Panel Thickness min - max 1 - 12.7 mm
for Panel Thickness min - max 0 - 0.5 "
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026665771
UNSPSC Key 39121717
