Scroll down for alternative automation-ready products.

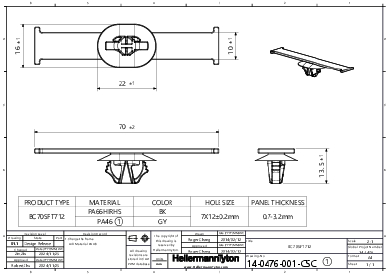

Bundling clip for hole (oval), L=70.0mm, black, 4000pcs.
Art.-No. 151-01036 | BC70SFT712-PA66HIRHS-BK |  세부

    Downloads
    Colour Black (BK)
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC70SFT712-PA66HIRHS-BK
    Pack Content 4000pcs.
    Package Content packed in carton
    Product Family Oval holes
    Product Group Bundling Clips with Arrowhead
    Type BC70SFT712
    Bundling Bar Length 70.0mm
    Disc ∅ 16.0 x 22.0 mm
    Fixing Hole Shape Oval
    Height (H) 13.5mm
    Length (L) 70.0mm
    Panel Thickness max. 0.7 - 3.2mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.7 - 3.2 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026492223
    Packaging 1 - Qty 4000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 7.53kg
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0495m³
    Packaging 3 - Weight (kg) 8.49kg
    Packaging 3 - Width (m) 0.395m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 53.4kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
    Art.-No.: 151-01036 세부 문의
