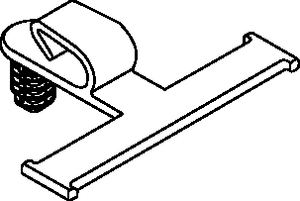

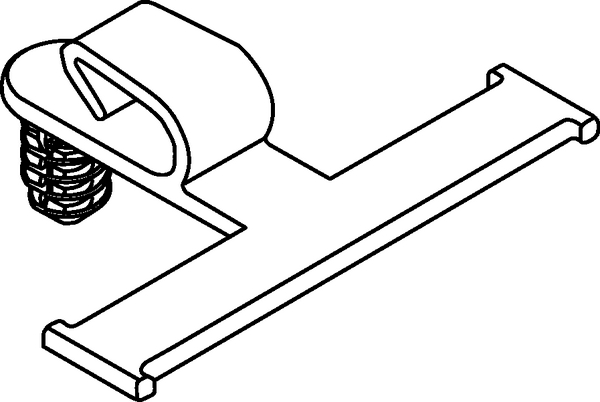

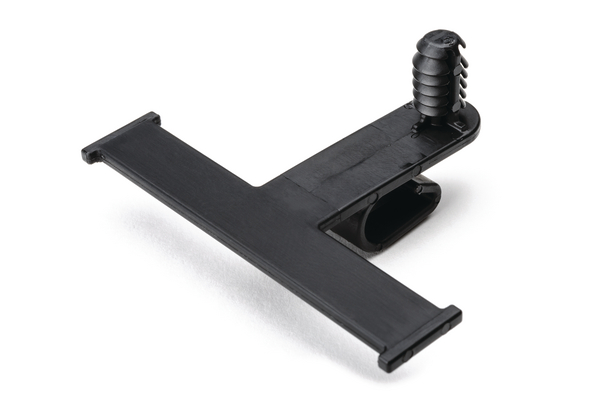

Bundling clip for hole (round), L=56.0mm, SO=32.5mm, black, 1500pcs.
Art.-No. 151-00623
| SOCHFT6-PA66HIRHSUV-BK
|
세부
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SOCHFT6-PA66HIRHSUV-BK |
| Pack Content | 1500pcs. |
| Package Content packed in | box |
| Product Family | Round holes |
| Product Group | Bundling Clips with Fir Tree for Distance Routing, for Tubes and Harnesses |
| Type | SOCHFT6 |
| Bundle Diameter max (metric) | 7.0mm |
| Bundle ∅ min. | 7.0mm |
| Bundling Bar Length | 56.0mm |
| Height (H) | 22.5mm |
| Length (L) | 56.0mm |
| Length (L2) | 42.5mm |
| Offset Length | 32.5mm |
| Panel Thickness | 0.03 - 0.22" |
| Panel Thickness max. | 0.7 - 5.5mm |
| Panel Thickness max. (imperial) | 0.22" |
| Panel Thickness min. (imperial) | 0.03" |
| for Hole ∅ (FH) | 6.35 - 7.0 mm |
| for Panel Thickness min - max | 0.7 - 5.5 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026701974 |
| Packaging 1 - Qty | 1500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 3.919501kg |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 4.62kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 113.79kg |
| Packaging 4 - Width (m) | 0.8m |
