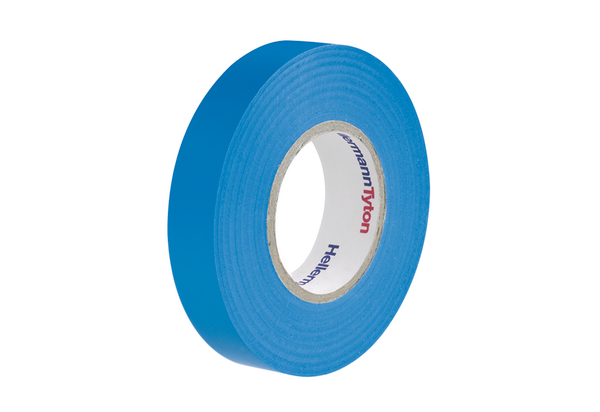

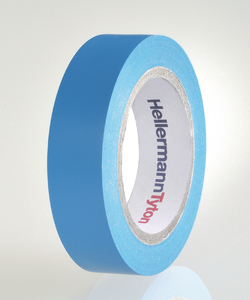

PVC Electrical Insulation Tape 15mm x 10m blue
Art.-No. 710-00100 | HTAPE-FLEX15-15x10-PVC-BU | 세부

Vinyl electrical tape in many different colours
Used for insulation, protection, fixing, maintenance, colour coding and more
Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
Highly flexible with outstanding adhesion performance
Harnessing of wires and cables
Suitable for mechanical and electrical applications up to 1 kV
VDE approved according to IEC 60454-3-1-6/F-PVCP/90
Flame retardant according to IEC 60454-2

More products in this product group:

Application	Primary electrical insulation for all wire and cable splices up to 1kV. Protective jacketing for low, high, and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications.
Colour	Blue (BU)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	HTAPE-FLEX15-15x10-PVC-BU
Pack Content	10m
Package Content packed in	pack
Product Family	HelaTape Flex 15
Product Group	Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape
Type	HTAPE-FLEX15-15x10

Adhesion to Backing	2.0N/10 mm
Adhesion to Steel	2.2N/10 mm
Breaking Strength	28N/10 mm
Dielectric Strength	45kV/mm
ELV compliant (Article 4 - 2)	YES
Elongation at break	200 %
Hazardous Goods	No
Insulating (Yes/No)	Yes
Operating Temperature	-10 °C to +90 °C
ROHS compliant	Yes
Self extinguishing	Yes
Shelf Life	5 years
Specifications
Specifications	IEC 60454-3-1-6/F-PVCP/90
Suitable for high voltage (Yes/No)	No
Tensile Strength	19.5N/mm²
