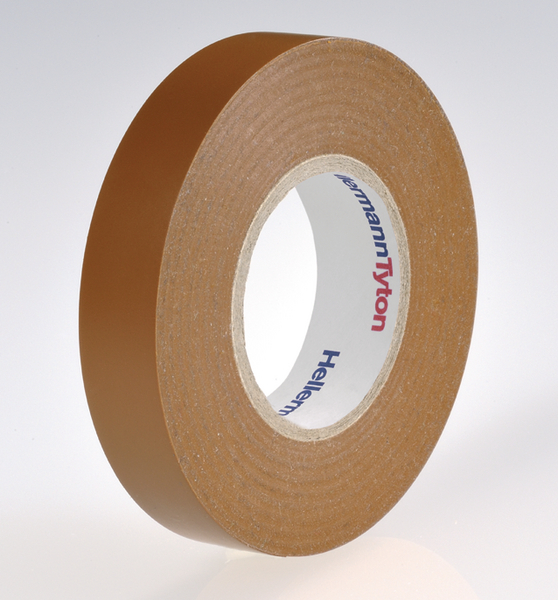

PVC Electrical Insulation Tape 15mm x 25m brown
Art.-No. 710-00118
| HTAPE-FLEX15-15x25-PVC-BN
|
세부
This product is not available anymore.
Alternative product available
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Brown (BN) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX15-15x25-PVC-BN |
| Pack Content | 1m |
| Package Content packed in | reel |
| Product Family | HelaTape Flex 15 |
| Product Group | Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
| Type | HTAPE-FLEX15-15x25 |
다운로드
| Adhesion to Backing | 2.0N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 28N/10 mm |
| CAS Number | 117-81-7 |
| Critical Substance |
Diethylhexyl phtalate DEHP concentration |
| Dielectric Strength | 45kV/mm |
| EC Number | 204-211-0 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 200 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications | VDE |
| Specifications |
|
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 19.5N/mm² |
| GTIN-13 / EAN | 4031026401812 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.08m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0001m³ |
| Packaging 1 - Weight (kg) | 0.078kg |
| Packaging 1 - Width (m) | 0.08m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | carton |
| Packaging 3 - Weight (kg) | 7.8kg |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 6000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 489.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
